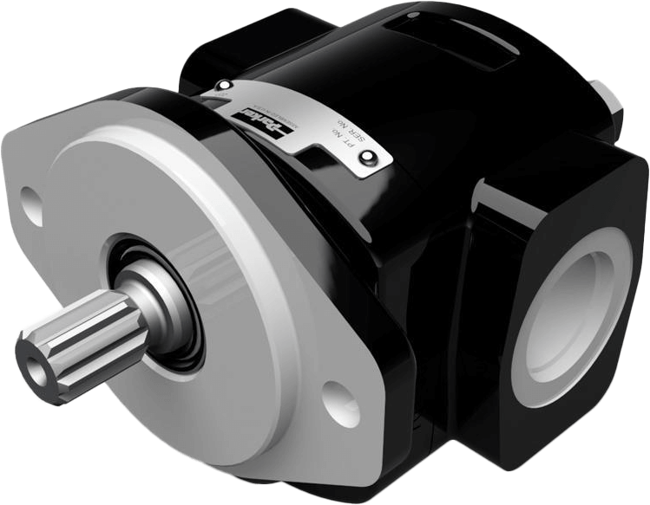

Cast Iron Pumps - PGP610 Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s 600 Series power density provides the desired horsepower without requiring more expensive pump/motor technology and lowers OEM bill-of-material expenditures.

Parker’s 610 series fixed/positive displacement external gear pumps are high pressure pumps that offer the most volumetrically efficient and power dense solution due their interlocking, two-piece cast iron design, making the 600 series ideal for engineered mobile equipment solutions demanding energy efficient, high performing hydraulic systems.

The 600 series is widely used in the most demanding applications such as Construction, Material Handling, and Military.

They are available as single or multi-section hydraulic pumps with pressure relief and anti-cavitation.
Features
  • Two-piece, interlocking body construction for high efficiency and high pressure
  • Cast iron pumping sections for durability
  • Journal bushings for long life
  • Pressure balanced thrust plates for high efficiency
  • Multiple sections available

Specifications

Brand

Body Material

  • Cast Iron

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single / Tandem / Multiple

Control Method

  • Relief, Load Sense, Priority, Unloader

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester / Water Glycol

Maximum Displacement (cm3/rev)

  • 32

Maximum Displacement (inch3/rev)

  • 1.95

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 180° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 275

Maximum Operating Pressure (psi)

  • 3989

Maximum Radial Shaft Load (kg)

  • Consult Parker

Maximum Radial Shaft Load (Lbs)

  • Consult Parker

Maximum Speed (rpm)

  • 3750

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 8

Maximum Weight (Lbs)

  • 18

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -20° C

Minimum Fluid Temperature (°F)

  • 0° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE, ISO , DIN

Port Connection

  • SAE, ISO , NPT, BSPP, ODT

Port Connection Type

  • Flange / Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise / Bi-Rotational

Sensor Type

  • N/A

Shaft Type

  • SAE, ISO , DIN, Industry Specific

Thru-Drive Capability

  • No

  • Fan Drive Pump
  • Mower Pump
  • Steering and Brake Pump
  • Winch Pump
