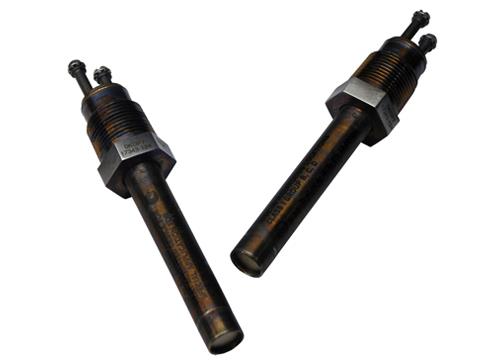

Series 17343 Fire & Overheat Detector

Brand: Fenwal Controls

The FENWAL® Series 17343 Fire & Overheat Detector is a normally open device that helps to monitor fire and overheat conditions.

It can be used in locations with high ambient temperatures.

The detector is made from welded stainless steel and is completely sealed.

It is not repairable and cannot be disassembled.

The detector is set to a specific alarm temperature when it is made at the factory and the temperature cannot be adjusted.

The detector electrically connects to its related equipment through two terminal posts with internal threads.

Stainless steel screws attach the wiring from the related equipment to the two terminals.

The detector mechanically attaches to the monitored area by 3/4-14 National Pipe Thread (NPT) located on the head of the detector.
Features
  • Hermetically Sealed
  • Tamper Proof
  • Pre-set Temperatures
  • Shock and Vibration Resistant
  • Ex Proof assembly available with Multi Position mounting

1 - 5 of 5 Part Numbers
17343-124 GREEN
17343-124 GREEN
  • Heat Setting - 140° F ± 7.5° F (± 4.17° C)
  • Color - Green
17343-124 GREY
17343-124 GREY
  • Heat Setting - 140° F ± 7.5° F (± 4.17° C)
  • Color - Grey
17343-124 NONE
17343-124 NONE
  • Heat Setting - 140° F ± 7.5° F (± 4.17° C)
  • Color - No Color
17343-124 ORANGE
17343-124 ORANGE
  • Heat Setting - 140° F ± 7.5° F (± 4.17° C)
  • Color - Orange
17343-124 RED
17343-124 RED
  • Heat Setting - 140° F ± 7.5° F (± 4.17° C)
  • Color - Red
1 - 5 of 5 Part Numbers

Specifications

Approvals & Certifications

  • ATEX
  • CE (Intertek)
  • CSA
  • GOST
  • IECExETL12.0008U
  • Korean 14-KB4BO-0749U
  • UL

Electrical Rating

  • 0.5 A at 125 Vdc

Enclosure, Body Material

  • Stainless Steel

Insulation Resistance

  • 20 megaohms at 500 Vdc, Terminals to Shell

Screw Material

  • Stainless Steel

Seal Type

  • Hermetically Sealed
