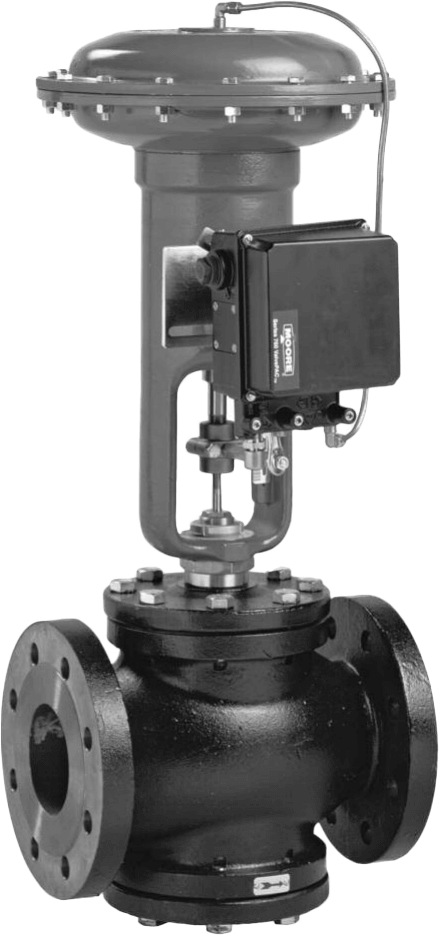

Screenshot 2022-06-30 091602.png

940 Series Heavy Duty Control Valve

Brand: Trerice Gauges & Valves
Add Product to My Catalog

The Trerice 940 Series Pneumatic Control Valve offers extreme quality and maximum valve performance.

The Series 940 is available in a variety of 2-way and 3-way valve styles for industrial, demanding HVAC and commercial process applications.

The 940 Actuator can be furnished with a 14" or 17" diaphragm and includes a rugged, die cast aluminum diaphragm chamber.

For optimal performance, the service conditions (medium, flow, temperature, inlet and outlet pressures) of the application must be considered when selecting a valve.

Please refer to the Valve Selection Section of this catalog. Consult the Valve Selection tables for the capabilities of a particular valve/actuator assembly.

A positioner may be required to maximize the close-off capability of the valve. Improper application may cause failure of the valve, resulting in possible personal injury or property damage.
Features
  • Diaphragm Actuated
  • 14" & 17" Actuator Sizes
  • Heavy Duty Die Cast Housing and Yoke
  • ½" - 8" Valve Sizes

View_Details

Specifications

Brand

Models

  • 940B & 940C

Diaphragm Size

  • 14” & 17”

Construction

  • Aluminum Yoke and Diaphragm Chamber, Acrylic Enamel Finish

Pressure Plate

  • Aluminum

Diaphragm Material

  • Nylon Reinforced Buna-N

Input Signal

  • 3-15 psi
  • 9-15: Single Seat - Fail Close Only

Air Pressure to Diaphragm

  • 30 psig Max.

Air Pressure Connection

  • 1/4” NPT Female

Operating Temperature

  • Ambient: -40° F (-40° C) to 180° F (82° C)
  • Process Flow: -40° F (-40° C) to 410° F (210° C)

Approximate Shipping Weight

  • 940B: 45 lbs (20 kg)
  • 940C: 86 lbs (39 kg)

Positioner

  • Models: 760P (Pneumatic) & 760E (Electropneumatic)
  • Action: Direct
  • Input Signal Ranges: 760P: 3 to 15 psig | 760E: 4-20 mA
  • Air Requirements: Clean, Oil-Free, Dry Air | Max. Supply Pressure: 30 psig | Air Consumption: 0.28 SCFH (760P), 0.38 SCFH (760E) | Typical Flow Rate: 9.0 scfm
  • Connections: Pneumatic: 1/4” NPT | Gauge: 1/8” NPT | Electrical: 3/4” NPT | Exhaust: 1/4” NPT
  • Enclosure: NEMA 4X, IP65
  • Ambient Temperature: -40° F (-40° C) to 185° F (85° C)
  • Weight: 10 lbs (4.55 kg)
