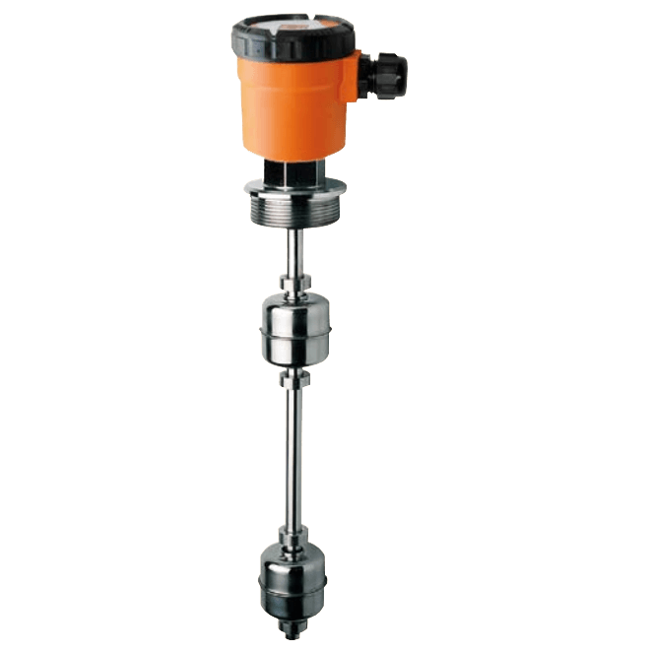

Kobold Magnetic Level Switch, M08

M08 Magnetic Level Switch

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Magnetic level switches are used for the monitoring and control of liquid levels in vessels. Magnetic level switches are manufactured to customer specification.
Features
  • Simple installation
  • Long electrical service life due to sealed contacts
  • High-degree of operational reliability with air gap between guide tube and floats
  • Installation in top or bottom of vessel
  • Several levels can be monitored with one float
  • Open/close function or changeover contact available

View_Details

Specifications

Brand

Approvals & Certifications

  • ATEX
  • Ex

Bore Size

  • 0.59” (15 mm)

BSP Connection

  • G 1”
  • G 1-1/2”
  • G 2”
  • G 3/8”

Cable Length

  • 3.3 feet (1 metre)

Cable Material

  • PVC
  • Silicone

Connection Material

  • ABS
  • Aluminum
  • PA
  • Polypropylene

Electrical Connectors

  • M16 x 1.5
  • M20 x 1.5
  • PG16
  • PG7

Electrical Contacts

  • Changeover Contact
  • N/C Contact
  • N/O Contact

Electrical Rating

  • 230 Vac/dc / 1 A / 60 VA - N/O, N/C & Changeover Contact

Enclosure, Body Material

  • 316 Stainless Steel - Tube
  • Brass - Tube

Environmental Protection

  • IP65

Flange Material

  • 316 Stainless Steel
  • Brass
  • PVC

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - ANSI B16.5 Class 150
  • 1-1/2” (DN 40) - DIN EN 1092-1 PN 16

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - ANSI B16.5 Class 150
  • 2-1/2” (DN 65) - DIN EN 1092-1 PN 16

Flange Size - 2” (DN 50)

  • 2” (DN 50) - ANSI B16.5 Class 150
  • 2” (DN 50) - DIN EN 1092-1 PN 16

Flange Size - 3-1/2” (DN 90)

  • 3-1/2” (DN 90) - ANSI B16.5 Class 150

Flange Size - 3” (DN 80)

  • 3” (DN 80) - ANSI B16.5 Class 150
  • 3” (DN 80) - DIN EN 1092-1 PN 16

Flange Size - 4” (DN 100)

  • 4” (DN 100) - ANSI B16.5 Class 150
  • 4” (DN 100) - DIN EN 1092-1 PN 16

Flange Size - 5” (DN 125)

  • 5” (DN 125) - DIN EN 1092-1 PN 16

Hysteresis

  • 0.197” (5 mm)

Length

  • Maximum

Maximum System Pressure

  • psi: 290 (kPa: 2000, bar: 20) at 20° C

Mounting Position

  • Vertical ± 30°

Nominal Pressure

  • psi: 290 (kPa: 2,000, bar: 20)

NPT Connection

  • 1” NPT Male
  • 1-1/2” NPT Male
  • 2” NPT Male

Screw Material

  • 316 Stainless Steel - Screwed Fitting
  • Brass - Screwed Fitting
  • PP - Screwed Fitting
  • PVC - Screwed Fitting
  • PVDF - Screwed Fitting

Sensor / Probe Style

  • Float - Cylinder Hollow

Switch Type

  • Changeover Contact
  • SPDT

Temperature Range

  • Maximum
