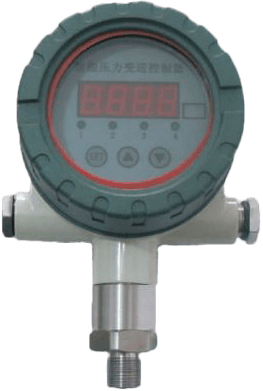

Digital Oil Pressure Switch Controller

Brand: Xi'an UTOP Measurement Instrument Co, Ltd

Digital pressure controller is a pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

It is widely used in water and electricity industry, petroleum industry, chemical industry etc.

UPS5 digital oil pressure switch controller is using high quality silicon pressure sensor as sensing element, this smart digital instrument has combined functions like pressure measurement, display, output and 4-way relay controls.

This digital oil pressure switch controller is suitable for flow medium pressure measurement and control, and transfer remote analog output signal 4~20 mA or digital RS485 (MODBUS RTU) for easy networking.

UPS5 digital oil pressure switch controller is widely used in water and electricity industry, petroleum industry, chemical industry etc, for the level measurement and control of many kinds of fluids or gas on the spot.
Features
  • Flame Explosion-proof housing design
  • 4-digit LED display, without apparent value error
  • 4-channel control point relay output 220 V/3 A
  • 4 ~ 20 mA standard output (optional)
  • 4-channel control point can be set on the spot
  • Power supply optional: 24 V DC or 220 V AC
  • RS485 interface, for easy networking (optional)

Specifications

Pressure Medium

  • Gas or Liquid Compatible with Stainless Steel

Pressure Ranges

  • -1...0 ~ 1...1000 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA

Controlling Accuracy

  • 0.25 % Full Scale (Standard), 0.5 % Full Scale

Display

  • 0.56” 4-Digit LED

Display Accuracy

  • 0.1 % Full Scale

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 24 Vdc or 220 Vac

Compensated Temperature Range

  • -10° C ~ +70° C

Media Temperature Range

  • -40° C ~ +120° C

Coefficient Temperature

  • 0.2 % Full Scale/10° C

Process Connection

  • M20 x 1.5 or Others

Material of Housing

  • Cast Aluminum

Material of Wetted Part

  • 1Cr18Ni9Ti

Protection

  • IP66

  • Water and Electricity Industry
  • Petroleum Industry
  • Chemical Industry
