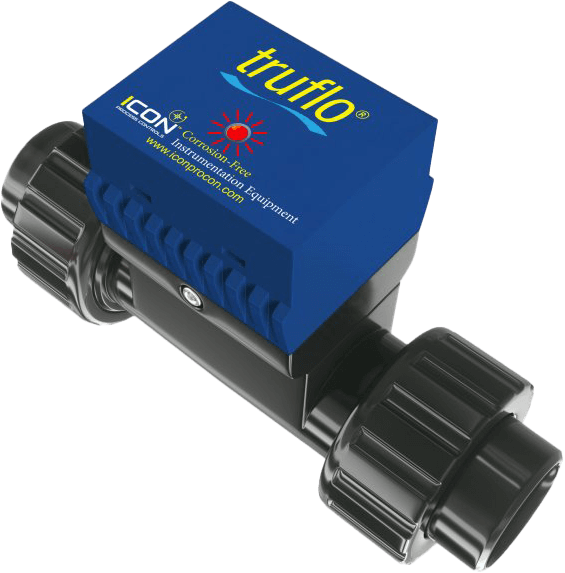

TKW In-Line Paddle Wheel Flow Meter
Brand: Truflo®The TKW Series digital paddle wheel flow meter has been designed for tough industrial applications.
The TKW series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids.
The plastic in-line flow meter is a blind unit equipped with an LED flow indicator and can provide pulse, 4-20mA or voltage outputs.
The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.
Icon’s chemical paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings.
The TKW series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.
The TKW liquid in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF.
Features- NPN Pulse | Voltage | 4-20mA Outputs
- Life-Time Warranty on Paddle Assembly
- Industry’s Highest Accuracy: +/- 0.5%
- Chemical Resistant Materials: PVC, PP, PVDF
- No Programming
- Tefzel® Paddle Wheel
- Zirconium Ceramic Rotor & Bushings
Specifications
Brand
Operating Range
- 0.3 to 33 ft/s
Pipe Size Range
- 1/2” to 4”
Linearity
- ± 0.5 % of Full Scale @ 25° C
Repeatability
- ± 0.5 % of Full Scale @ 25° C
Sensor Body Materials
- PVC
- PP
- PVDF
O-ring Material
- FKM
- EPDM
- FFKM
Frequency
- 49 Hz per m/s nominal
Supply Voltage
- 5 to 24 Vdc ± 10 % Regulated
Operating Temperature
- PVC: 32° F to 140° F
- PP: -4° F to 190° F
- PVDF: -40° F to 240° F
- Liquid Chemical Flow Measurement
- Filtration Systems
- Water & Wastewater Monitoring
- Industrial Chemical Distribution
- Process Chemical Skids
- Liquid Consumption
- Discharge Verification
