Temperature and Level Sensor

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

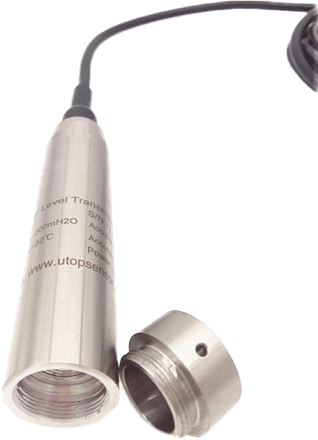

ULB-2T Temperature and Level Sensor is composed by high accuracy & stability pressure sensor, temperature sensor and special-propose circuit, the level and temperature of measured medium will be transformed to standard 4~20 mA electrical output signals.

This level sensor has an integrated design, can measure level and temperature of one point simultaneously, is suitable for used in place where need both level measurement and temperature measurement.

The unique craft seal structure of ULB-2T Temperature and Level Sensor makes it have good performance of preventing leak, even this product is be immersed into liquid for a long time, it still has good operation reliability.

ULB-2 is featured with high accuracy, good stability, long service life as well as easy installation etc.
Features
  • Level & temperature measurement simultaneously
  • Two channel 4~20 mA output signals or two channel voltage signals
  • Good ability of anti-jamming, good long term stability

View_Details

Specifications

Brand

Measured Medium

  • Liquid Compatible to Stainless Steel

Measured Temperature Ranges

  • -20° ~ +100° C

Measuring Accuracy of Temperature

  • 0.5 % Full Scale

Output Signal of Temperature

  • 4~20 mA (0~5 V, 1~5 V optional)

Level Measured Ranges

  • 0 ~ 1...200 mH₂O

Measuring Accuracy of Level

  • 0.25 % Full Scale (Standard)

Output Signal of Level

  • 4~20 mA (0~5 V, 1~5 V optional)

Compensated Temperature Range

  • -10° ~ 70° C

Operating Temperature Range

  • -30° to 100° C

Power Supply

  • 10 ~ 32 Vdc

Electrical Connection

  • Ø 7.2 mm Shielded PVC Cable with Vent Hose

Material of Housing

  • Stainless Steel

Protection

  • IP68

  • ULB-2T is widely used in Many Areas like Scientific Research, War Industry, Petrochemical Industry, Electric Power, Water Conservation, and Oil Fields for Pressure & Temperature Measurement and Control

Documentation

Data Sheets
