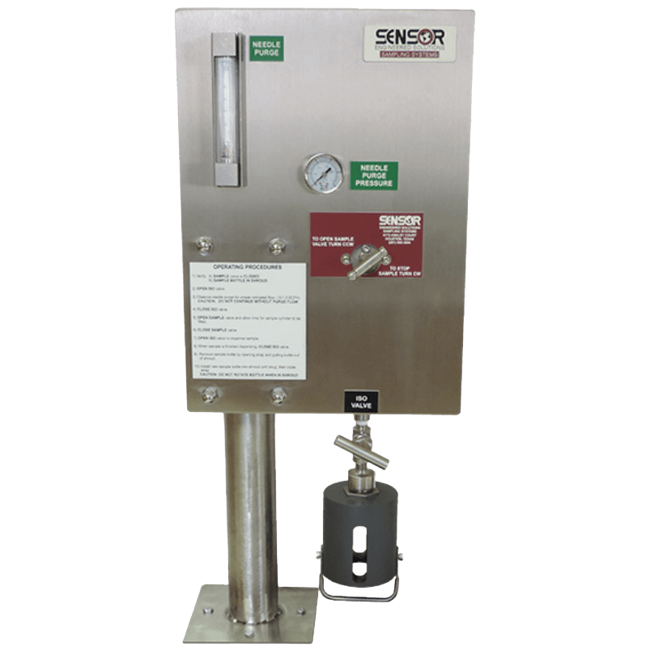

SOR Fixed Volume Bottle Sampling System, FVBSS

FVBSS Fixed Volume Bottle Sampling System

Brand: SOR Inc
Add Product to My Catalog

SOR Fixed Volume Bottle Sampling System, FVBSS
The SENSOR Fixed Volume Bottle Sampling System (FVBSS) provides a repeatable fixed volume of sample during each sampling process without stopping flow of the process fast loop.

As a safety precaution, it helps prevent overfilling of bottle. It utilizes the same sample valve as the Basic Bottle Sampling System (BBSS), with the addition of a needle valve to control the flow of the fixed volume into the sample bottle.

No external tubing is required for the fixed volume chamber. The fixed volume chamber will be sized to meet the exact requirements of your sampling application.

FVBSS is recommended when process pressure exceeds 150 psig or when a repeatable, defined volume of sample is desired.

SENSOR Needle Purge (SNP) is included in the fixed volume design.
Features
  • Eliminate the possibility of overfilling a sample bottle
  • Automatically purges process needle of any residual process thru SENSOR needle purge (SNP)
  • Positive indication of free-flowing system; no plugged sample or vent needles
  • Isolates sample bottle from process pressure
  • 316L wetted parts standard
  • Viton/Teflon seals standard
  • Fixed volume sizes: 2oz-32oz (60mL–1,000mL) other sizes available
  • Operation & installation manual included

View_Details

Specifications

Brand

Materials of Construction

  • 316 Stainless Steel, Process Needle (0.083”-0.148” O.D.), (0.083” O.D.)
  • Bottle Shroud: PVC, 2-32 Oz
  • Retaining Strap & Mounting Plate: Stainless Steel
  • Sample Loop & Sample Valve: 316L Stainless Steel, Flow Port

Mounting

  • 2” x 60” Pipe Stand, Galvanized
  • Panel Mount

O-Ring Material

  • Kalrez
  • Viton

Operating Pressure

  • psig: 2,000 (kPa: 13,790, bar: 137.9) 21.1° C (70° F)

Operating Temperature

  • 427° C (800° F) - Max.
  • 57.2° C (135° F) - Max.

Seat / Seal Material

  • Seal: Teflon
  • Seal: Viton

Size

  • Needle Size: 0.083” to 0.25” (2.1 to 63.5 mm)

Tube Connection

  • 1/2” Tube
  • 1/4” Tube
  • 3/8” Tube

Wetted Materials

  • 316L Stainless Steel

Documentation

Data Sheets
