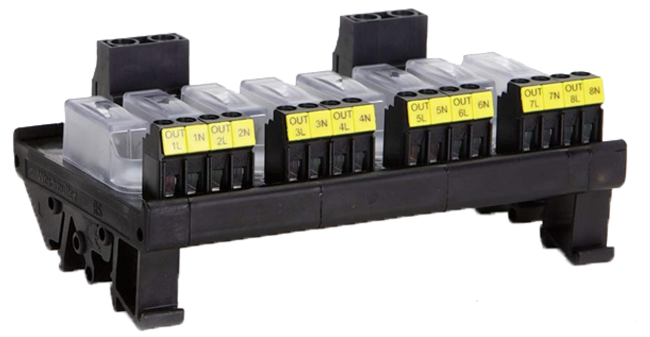

DEPRO-FM5-8 8-Channel Fuse Module.png

DEPRO-FM5/8 8-Channel Fuse Module

Brand: Emphatec
Add Product to My Catalog

The DEPRO - FM5/8 modules provide power distribution and fusing in one convenient package.

The modules include sockets for eight 5 x 20 mm fuses under protective covers and LEDs to show the status of each fuse. Because the modules distribute both line and neutral (or 24 V and 0 V) the LED is on when the fuse is healthy and there is no leakage current if a fuse blows.

Fuses up to 4 A can be installed (fuses are not provided with the modules) but the total current drawn from all eight channels cannot exceed 30 A.

Terminals are clearly marked and the module mounts on 32 mm and 35 mm DIN rails. These modules reduce installation time as there is no need to install jumpers or cross connections for power distribution. They are also quicker to install than the equivalent fuse terminals and feedthrough terminal blocks.
Features
  • Single input, 8 fused outputs

  • Suitable for applications requiring total of 30 A

  • Class 2 Division 2 / Zone 2 certified

    • Specifications

    Brand

    Ambient Temperature Range

    • -20° to 50° C (-4° to 122° F)

    Approvals & Certifications

    • CSA: Class I, Div. 2, Groups A, B, C, D Temperature Code T4A Ex NA IIC Zone 2, AEX NA IIC

    Indication

    • Status LED: Green

    Input

    • 30 A Total

    Mounting

    • DIN Rail Mounting

    Output

    • 4 A, Max.

    Termination

    • Terminations: 26 to 10 AWG (Input)
    • Terminations: 26 to 12 AWG (Output)

    Torque

    • Input & Output: 0.5 to 0.6 Nm

    Voltage

    • Nominal: 120 Vac - 330149
    • Nominal: 24 Vdc - 330205

    Documentation

    Data Sheets
