Combiprobe CP100 System

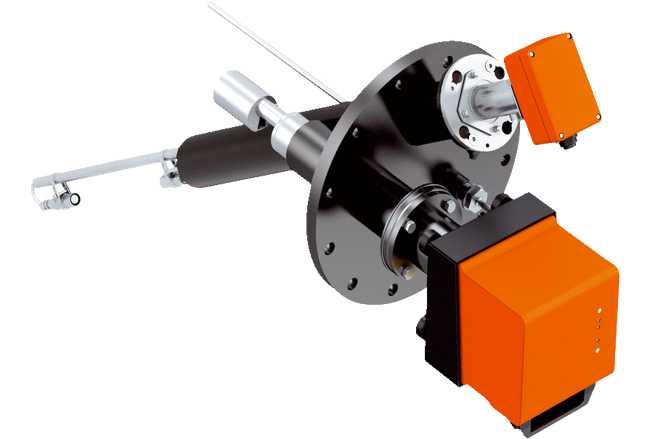

Brand: Sick AGThe Combiprobe CP100 is the combination of a DUSTHUNTER SP100 scattered light dust measuring device and a FLOWSIC100 PR volume flow measuring device on a flange plate.
The combined probe also features a pressure transmitter and a resistance thermometer.
The Combiprobe CP100 only requires a single mounting opening in the funnel in order to measure the dust concentration, volume flow, pressure and temperature.
This means that there is considerably less outlay on installation than if the individual components were to be installed separately.
Features- Easy to install complete solution for detecting dust emission and the emission-related benchmarks of volume flow, pressure and temperature
- Low operating costs due to the measuring devices' long maintenance intervals
- Durable and reliable components
- Scattered light dust measuring device and volume flow measuring device that have been performance-tested according to EN 15267
Specifications
Brand
Measuring Range
- Dust Concentration: 0 to 200 mg/m³
Gas Velocity
- 0 to ± 40 m/s / 0
Absolute Gas Pressure
- 800 to 1,200 hPa
Gas Temperature
- -50° to 400° C
Response Time
- FLOWSIC100 PR: 1 to 300 s
- DUSTHUNTER SP100: 1 to 600 s
Process Pressure
- -70 to 10 hPa
Process Temperature
- -20° to 200° C
Ambient Temperature
- Intake Temperature for Purg Air: -20° to 45° C
- -20° to 60° C
Certifications & Approvals
- CE
Environmental Protection
- IP66
- IP65
- IP54
Power Supply
- Pressure Sensor, Temperature Sensor: 10-30 Vdc
- DUSTHUNTER SP100, FLOWSIC100 PR Supply via Control unit: 24 V
Power Consumption
- DUSTHUNTER SP100, FLOWSIC100 PR: ≤ 70 W
- Pressure Sensor, Temperature Sensor: ≤ 1 W
