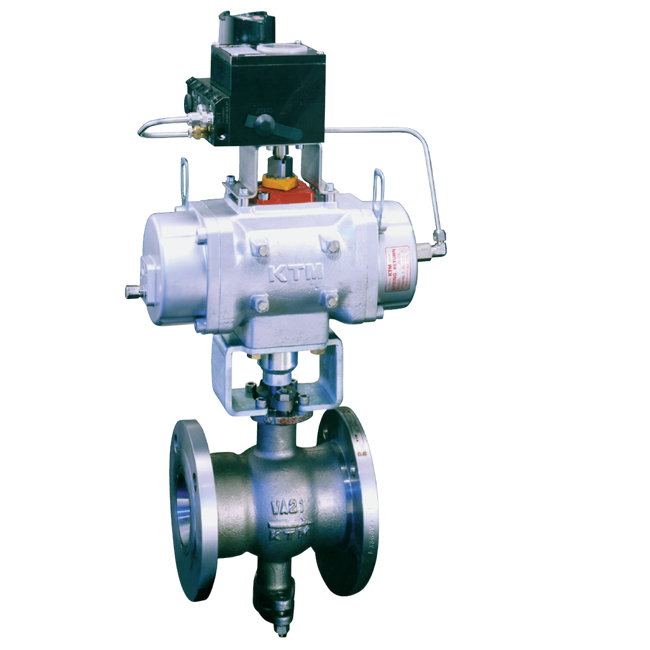

DualV HiPerformance Control Ball Valves
Brand: KTMEnhanced, proven design offers both control and block valve functions.
Features- Unique dual-V ball features a secondary (Small) V-notch allowing extremely small, accurate flow rates.
- The primary (Large) V-notch provides straight through and non-clogging flow.
- Dual-V ball allows rate changes and controls fluids with a rangeability in 250:1.
- Equal percent flow characteristic.
- Rotary-valve design provides shearing action between the V-notch ball and the seat, promoting a smooth, non-clogging operation.
- Spring loaded stellited metal seat.
- ANSI / FCI 70-2 Class V.
- Unibody design protect from the effect of piping stress.
- Minimum body cavity reduces build-up.
- Fugitive emissions control for flammable and non-flammable applications.
- Available in flangeless or flanged construction.
- Multiple, adjustable ring packing allows easy adjustment without valve disassembly or actuator removal.
Specifications
Brand
Approvals & Certifications
- CE, Fugitive Emission, PED, Regional, Fire Safe
Critical Service
- Corrosive, Dirty Service, Erosive, Flashing, General Service
End Connection
- Flanged, Flangeless
Flow Characteristics
- Equal Percentage
Material
- 316 Stainless Steel
Operating Temperature
- High Temperature
Pressure Class
- ASME
Shutoff Class
- Class V (FCI 70-2)
Valve Size
- NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 2 / DN 50, NPS 1 / DN 25, NPS 1-1/2 / DN 40
Valve Size Standard
- DN, NPS
Valve Type
- Segmented Ball Valve, Ball
