Wise Bimetal Temperature Gauge, T531(H), T532(H/L), T533(L), T534(H/HH), T535(L/LL), T536(H/L)

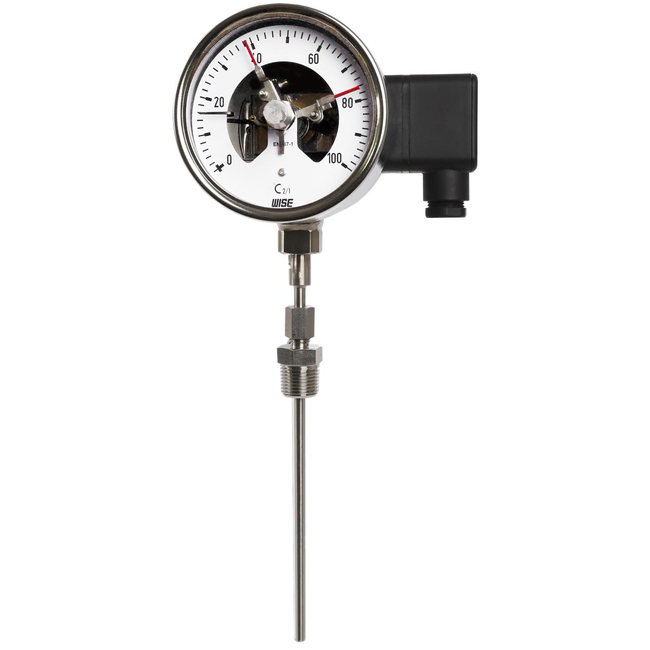

Euro Gauge Electrical Contact Type Bi-Metal Temperature Gauge T531 (H), T532 (H/L), T533 (L), T534 (H/HH), T535 (L/LL), T536 (H/L)

Brand: Wise Control Inc
Add Product to My Catalog

Contact type temperature gauge is installed with electric contact actuated by pointer. It provides the function which electrical circuit can be opened or closed by manual set point. It is applicable where signal is required (Audible or visual alarm) for control of resistance or any other application with auxiliary relay and contact.

Specifications

Brand

Accuracy

  • ± 2.0 % of Full Scale

Case

  • 304 Stainless Steel

Contacts

  • With Max. No of Contact: 2 Sets Per Gauge
  • Contact Rating: AC 220 V, 0.25 A
  • DC 100 V, 0.5 A
  • Maximum

Cover

  • 304 Stainless Steel
  • Bayonet Typical

Dial

  • White Aluminum with Black Graduations

Location of Stem

  • Bottom Connection, Surface, Case Mounting

Nominal Diameter

  • 100 mm

Options

  • Special Accuracy, ± 1.0 % of Full Scale

Pointer

  • Black Painted Aluminum Alloy

Stem Out Diameter

  • 6.0, 6.4, 8.0 & 10.0 mm Diameter
  • 304, 316 & 316L Stainless Steel
  • Maximum

Stem, Process Connection

  • 3/8”, 1/2”, 3/4” PT or NPT G1/2B, G3/4B

Temperature Element

  • Coiled BiMetal

Window Material

  • Safety Glass Polycarbonate

Working Range

  • Maximum

Documentation

Data Sheets
