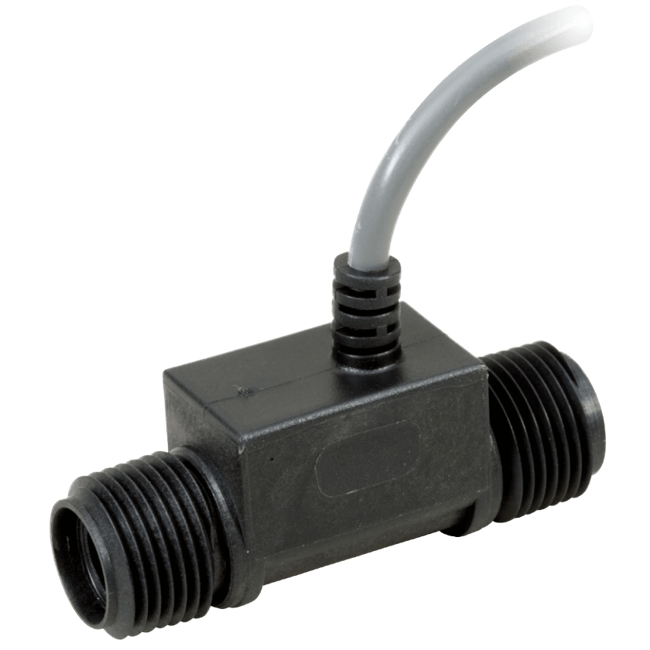

FT-330 Series Turbine Flow Sensor
Brand: Gems Sensors, IncThe FT-330 is a highly accurate and repeatable, Hall Effect turbine flow sensor designed for low flow OEM applications. This low cost, NSF listed flow sensor is ideal for water or beverage dispensing applications or any application with water based liquids.
The 316 Stainless Steel shaft coupled with Delrin bearings allows for accurate measurements during quick dispensing cycles.
The sensor's standard power and output specifications make it easy to retrofit existing controllers.
Features- High Accuracy: ±2% of reading
- High repeatability: ±0.5% of reading
- Overmolded electronics with integral cable strain reinforcement
- Measures flow rates from 0.2 to 4 GPM
- Lightweight plastic design for multiple mounting positions
Specifications
Brand
Accuracy
- ± 2 % of Reading
Applications
- Low Flow OEM Applications
Approvals & Certifications
- NSF
- RoHS
Bearing Material
- Delrin
- Polyoxymethylene
Burst Pressure
- psig: 1,000 (kPa: 6,895, bar: 68.95)
Electrical Connectors
- 3 ft PVC Cable, 22 AWG
Enclosure, Body Material
- Glass Reinforced PPO (Noryl)
Filter
- Recommended Filtration: < 50 microns
Flow Rate
- 0.2 to 4 gpm (0.8 to 15 LPM)
Input Power
- 5-24 Vdc at 8 mA
Materials of Construction
- Axle: 316 Stainless Steel
- Turbine: PA Composite (Nylon)
NPT Connection
- 3/8" NPT Male
Operating Pressure
- psig: 200 (kPa: 1,380, bar: 13.8)
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Output
- Maximum
- NPN Sinking Open Collector at 25 mA
Repeatability
- ± 0.5 % of Reading
Viscosity
- 32 to 81 SSU (1.8 to 16 Centistokes)
- Water or beverage dispensing applications
- Any application with water based liquids
