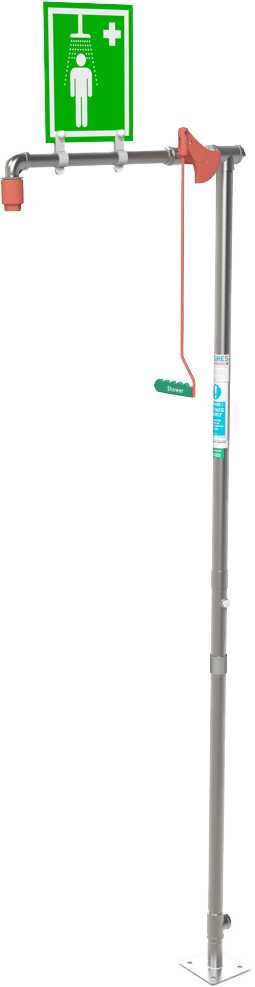

Floor Mounted Unheated Safety Shower
Brand: Hughes Safety ShowersThis unheated floor standing emergency safety shower is a popular choice for many indoor applications to protect those workers subject to the risk of exposure to hazardous substances.
Designed to deliver a continuous controlled flow of water that meets the ANSI standard of 20 US gallons per minute for a complete decontamination.
With easy-grip pull rod activation, or optional foot treadle for hands-free operation, this shower can be activated in seconds to minimize injury.
Features- Rigourously tested shower nozzle provides an accurate flow and even distribution of water at 20 US gallons per minute
- Quick and simple to operate using the easy-grip pull handle
- Optional foot treadle is available for hands-free operation
- Meets the requirements ANSI standards
Specifications
Brand
Pipework & Fittings
- Stainless Steel (GS) or galvanized mild steel (GGLV)
Operating Valve
- Stainless steel, full bore, stay open valve
Shower Nozzle
- Injection moulded nylon 6
Standard Finish
- Polished brush (GS) or green powder coated (GGLV)
Water Inlet
- 1-1/4" Female NPT
Operating Pressure
- 2 to 6 BAR G / 29 to 87 psi (higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)
Minimum Flow Rates
- 76 L per minute / 20 US gal per minute
Minimum
- 5C / 41F
Maximum
- 35C / 95F
Shower
- Pull handle
Dimensions (W×D×H)
- 150 mm (5.9 in) x 750 mm (29.5 in) x 2320 mm (91.3 in)
Weight
- 12 kg (26 lb)
- Indoors
- Suitable for hazardous areas
