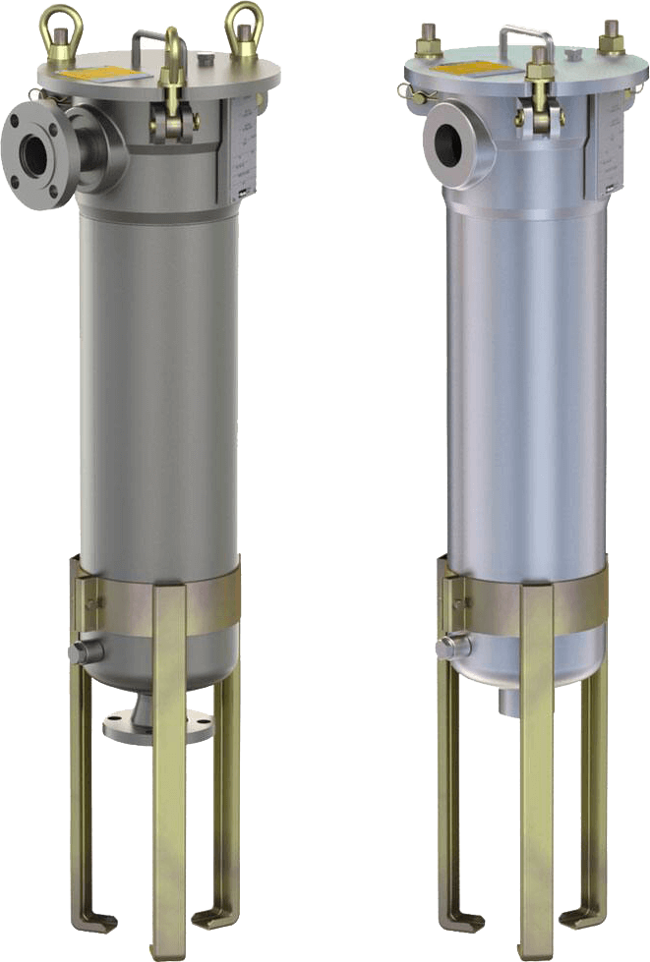

Fulflo Multi - Cartridge Filter Vessel | Carbon Steel, 304L & 306L Stainless Steel, ASME Code Design for Liquid / Gas Filtration

Brand: Domnick Hunter - by Parker
Add Product to My Catalog

Fulflo® FE multi-cartridge filter vessels meet a broad range of liquid and gas filtration applications. It comes with standard zinc plated bolts and legs for corrosion resistance but is also offered with stainless steel options. Wall mounting brackets are available as well.

The FE filter vessels accommodate Double-Open-End (DOE) and Single-Open-End (SOE) filter cartridges in 10 in., 20 in., and 30 in. lengths.
Features
  • Single O-ring design closure assures quick, positive cover sealing
  • Swing bolts with eyenuts for fast, easy opening and closing of cover
  • Dual purpose cartridge seats for use with DOE and 2-222 O-ring SOE cartridges
  • ASME Code UM stamp is standard (U stamp is optional)
  • Threaded vent & drain connections
  • Adjustable leg height
  • Threaded or flanged inlet and outlet
  • Side inlet cover opens without disconnecting piping
  • Side inlet, bottom outlet, and crevice-free welded design provide a smooth interior for easy wash-out and cleaning
  • Available in carbon steel, 304L & 316L stainless steel

View_Details

Specifications

Brand

Industry

  • Industrial
  • Oil & Gas
  • Inks, Paints, and Coatings

Function

  • Clarification
  • Prefiltration
  • Polishing

Filter Construction

  • Multi-Cartridge Filter Vessel

Materials of Construction

  • Carbon Steel
  • 304L Stainless Steel
  • 316L Stainless Steel

Specifications Met

  • ASME Sec. VIII, Div. 1, UM Stamp

Maximum Operating Pressure

  • 150 psi / 10.3 bar

Maximum Operating Temperature

  • 450° F

Flow Rate

  • 30 gpm, 60 gpm, 90 gpm

  • Portable Water Filtration
  • Process Water Filtration
  • Coatings Filtration
  • Lubricant Filtration
  • Coolant Filtration
  • Cutting Oil Filtration
  • Solvent Filtration

Documentation

Data Sheets

Brochure
