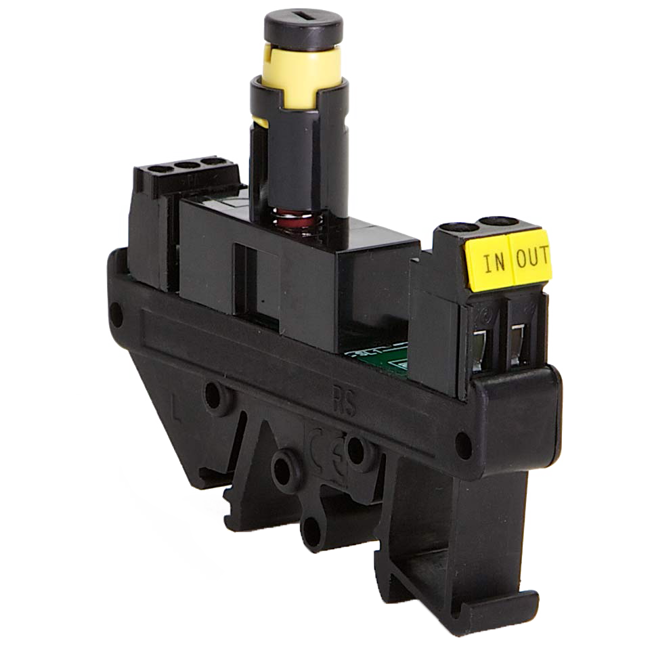

DEPRO-QTD Quarter Turn Disconnect Module

Brand: Emphatec
Add Product to My Catalog

The DEPRO-QTD modules are perfect examples of what we call Emphatically Unique products! These modules are designed for use in low current (up to 1 A) applications and provide an easy means of temporarily disconnecting a signal. The disconnect is operated using a screwdriver and can be secured in the open position. Best of all they can be operated under load. There are other quarter turn disconnect products available but be careful – read the literature closely and you might find they cannot be operated under load. This means before you can use them as a disconnect you must first disconnect the power to them The DEPRO-QTD modules use a sealed switch that has been tested for use in hazardous locations. This allows the QTD modules to be operated under load even in Class 1 Division 2 and Zone 2 hazardous locations Features:
  • Screwdriver operated disconnect with clear visual indication of position

  • Version available with status outputs

  • Class 1 Division 2 / Zone 2 certified

    • 1 - 1 of 1 Part Numbers
    DEPRO-QTD
    DEPRO-QTD
    • Model - QTD/1 A
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Ambient Temperature Range

    • -20° to 50° C (-4° to 122° F)

    Approvals & Certifications

    • cCSAus Class I, Div. 2, Groups A, B, C, D Temperature Code T6 Zone 2, EX NA IIC

    Current

    • 1 A

    Indication

    • Status LED: Green, on = Contact Closed (QTD/28V/1A 330242, QTD/120 V/1A 330243)

    Mounting

    • 32 mm & 35 mm DIN Rails

    Termination

    • 26 to 12 AWG (QTD / 1 A 330241, QTD / 28 V / 1 A 330242, QTD / 120 V / 1 A 330243, QTD / ST 330240)
    • 28 to 14 AWG (QTD/ST 330240)

    Torque

    • 0.2 to 0.25 Nm (QTD/ST 330240)
    • 0.5 to 0.6 Nm (QTD/1 A 330241, QTD/28V/1 A 330242, QTD/120V/1 A 330243, QTD/ST 330240)

    Voltage

    • 120 Vac (QTD / 1 A 330241,QTD / 120 V / 1 A 330243)
    • 28 Vdc (QTD/1 A 330241, QTD/28V/1 A 330242, QTD/ST 330240)
