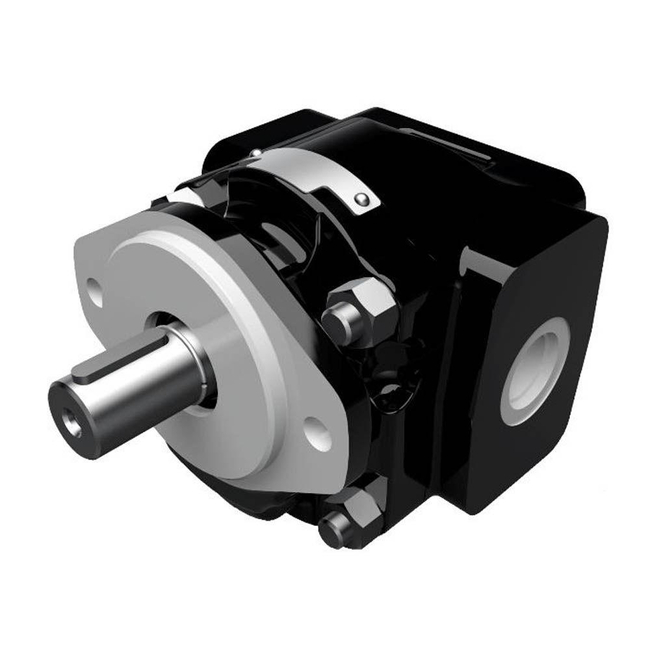

Cast Iron Motors - Series PGM620
Brand: Parker HannifinParker’s Cast Iron Motor PGM620 Series fixed displacement gear motor offers high performance and high power density dues to its two-piece cast iron construction, making it an ideal selection for the Agriculture, Construction, Forestry, Material Handling, Mining and Turf Equipment markets where durability and efficiency are important.
Features- Two-piece, interlocking body construction for high efficiency and high pressure
- Cast iron pumping sections for durability
- Journal bushings for long life
- Pressure balanced thrust plates for high efficiency
- Multiple sections available
Specifications
Brand
Body Material
- Cast Iron
Circuit Type
- Open
Configuration
- Single
Control Method
- Consult Parker
Filtration Ratings
- According to ISO 4406 Cl. 19/17/13
Fluid Type
- Standard Hydraulic Fluid / Phosphate Ester / Water Glycol / Biodegradable
Maximum Fluid Temperature (°C)
- 80° C
Maximum Operating Pressure (bar)
- 275
Maximum Weight (kg)
- 13
Minimum Fluid Temperature (°C)
- -20° C
Motor Displacement (cc/rev)
- 16 to 52
Motor Type
- Fixed
Mounting
- SAE B 2-Bolt / Rectangular
Port Connection Type
- BSP Thread
Porting Location
- Side Ports / Rear Ports
Rotation
- Bi-Direction
Shaft Type
- SAE B Splined / Taper Key
Speed Range (rpm)
- 500 to 3500
Technology
- Gear
- Fan Drive Motors
- Mower Motors
- Plow Motors
- Harvester Motors
- Sprayer Motors
- Pump Drive
