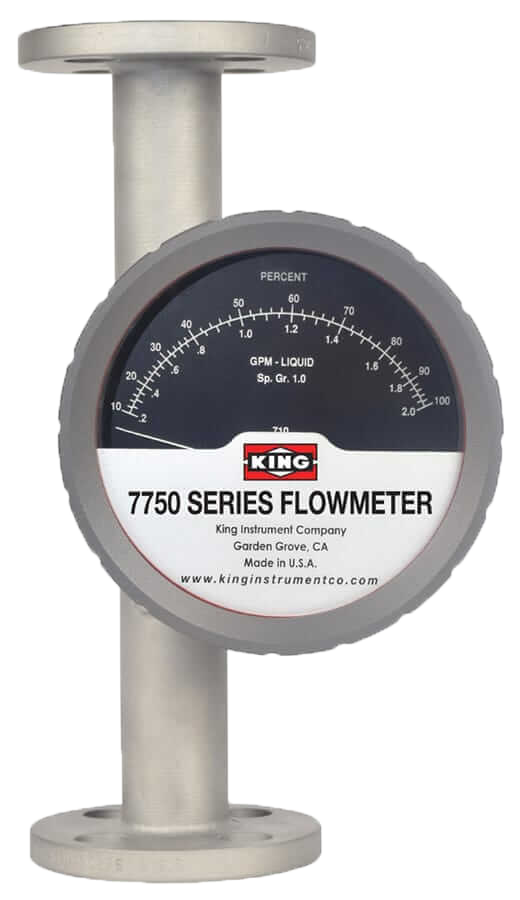

7750 Series Stainless Steel Tube Flowmeter
Brand: King Instrument CompanyThese 316L stainless steel meters feature flange connections, all welded construction (no O-rings), and an end to end length of 250mm.
A float and tapered tube design provides longer, more linear scales. A 4-20mA transmitter option adds to its versatility.
Features- Flange Connection, 250mm End-to-End Length
- 316L All Welded Construction; No Elastomers Used
- Available Alarm Options; 4-20mA Transmitter Output
- 120mm Detachable, Direct Reading Scale
- 0.55 – 16.5 GPM Water; 2.2 – 76 SCFM Air
1 - 12 of 112 Part Numbers
775-2-2-0-0-705
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 2.2 SCFM
775-2-2-0-0-706
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 33.0 GPH
775-2-2-0-0-707
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 4 SCFM
775-2-2-0-0-708
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 1.1 GPM
775-2-2-0-0-709
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 8 SCFM
775-2-2-0-0-710
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 2.0 GPM
775-2-2-0-0-711
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 16.5 SCFM
775-2-2-0-0-712
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 4.0 GPM
775-2-2-0-0-715
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 20 SCFM
775-2-2-0-0-716
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 5.0 GPM
775-2-2-0-0-717
- Flow Type - Air
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Air Flow - 42 SCFM
775-2-2-0-0-718
- Flow Type - Water
- Connection Type - 150# R.F. Flanged
- Float Material - 316L SS
- O-ring Material - No O-ring
- Optional Alarm/Transmitter - None
- Water Flow - 10.0 GPM
1 - 12 of 112 Part Numbers
Specifications
Brand
Overall Length
- 250 millimeters
Metering Tube
- 316L SS
Internal Components
- 316L SS
Inlet/Outlet Fittings
- 150# or 300# flange, vertical
Flange Material
- 316L SS
Scale
- 120 mm direct reading, detachable
Capacities
- Water: 33 GPH to 16.5 GPM
- Air: 2.2 SCFM to 76 SCFM
Scale
- 120 mm direct reading, detachable
Accuracy
- ± 3% of full scale flow
Turndown
- 10:1
Repeatability
- 1%
Maximum Temperature
- 400 °F
Maximum Temperature @ 300 °F
- 150#: 200 psi
- 300# 540 psi
