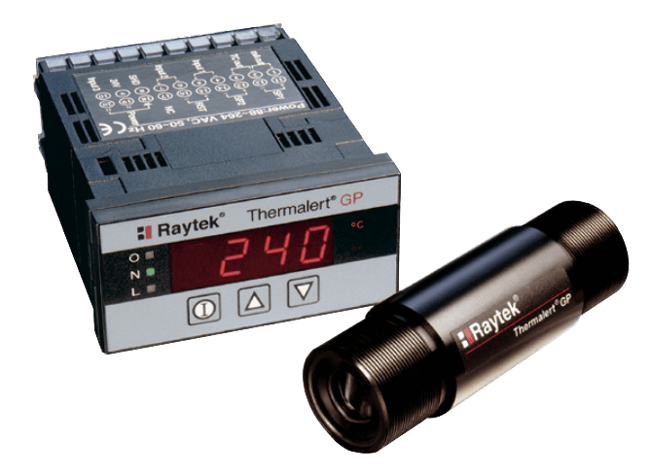

GP Temperature Monitor/Infrared Sensor
Brand: Raytek
The GP Series is a versatile, two-piece temperature monitoring system that combines a compact, value-priced monitor with an infrared sensing head. The heart of the system is the 1/8 DIN GP monitor which provides advanced infrared processing capabilities including peak and valley hold, averaging, and a user-adjustable offset.
The rugged Thermalert GPR sensor is available with standard or close focus optics, and provides target temperature readings with 1% accuracy.
Along with its large 4-digit LED display, the monitor provides a user-defined 4–20 mA or thermocouple output. Two adjustable setpoints/deadbands control 5 V alarm outputs or optional 3 A mechanical relays.
The GP monitor accepts universal 110-220 Vac power, and provides a 24 Vdc / 50 mA excitation voltage for loop power to external sensors. All monitor functions are configured via the front panel, including ° C / ° F switching.
The GP monitor provides adjustable emissivity and ambient compensation when used with the GPR/GPS infrared sensors. These high performance, 8–14 micron sensors, combine current loop driven signals with high resolution optics.
The GP monitor also works with other Raytek infrared sensors, including the CI, TX, MI and Marathon Series sensors.
Features- Temperature range from -18° to 538° C (0° to 1,000° F)
- Compact 1/8 DIN digital monitor with large 4-digit display
- Monitor and sensor functions configured on front panel
- Signal processing capabilities typically found on much larger systems
- Adjustable emissivity and T-ambient parameters
- Universal 110-220 Vac power included
- User-defined 4-20 mA or thermocouple output (J, K, E, N, R, S, T)
- Adjustable dual setpoints, deadband alarm outputs and optional mechanical relays
- Choice of sensing head to match application requirements
- Field interchangeable sensing heads
- Standard and close focus optics available
- Accessories for cooling and air purging
- GPS Laser Sighted Head w/ 50:1 optical resolution
Specifications
Brand
Accuracy
- ± 1 %
- 1° C (2° F)
Ambient Temperature Range
- 0° to 177° C (32° to 350° F)
Approvals & Certifications
- IEC 68-2-6
Dimensions
- 1.75” x 3.63” x 4.75” (44.45 x 92.20x120.65 mm)
Display
- 4-Digit
- 7-Segment LED Display
Environmental Protection
- IP54 (IEC 529) - GP Monitor Front Panel
- IP65 (IEC 529) - GPR/GPS Sensing Head
- NEMA 12 - GP Monitor Front Panel
- NEMA 4 - GPR / GPS Sensing Head
Excitation Voltage
- 24 Vdc at 50 mA
Frequency
- 11 to 200 Hz
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Input
- 0-5 V
- 4-20 mA
- J, K, E, N, R, S, T Thermocouples
Output
- 4-20 mA
- 5 V - Alarm Output
- J, K, E, N, R, S, T Thermocouple
Power Requirement
- 110/220 Vac ± 20 % at 50/60 Hz
Relay Output
- 3 A
Repeatability
- ± 0.5 %
- ± 1° C (± 2° F)
Response Time
- 300 milliseconds
Shock
- 50 G
Storage Temperature
- -30° to 65° C (-22° to 150° F)
Temperature Range
- -18° to 538° C (0° to 1,000° F)
Unit of Measure
- Celsius
- Fahrenheit
