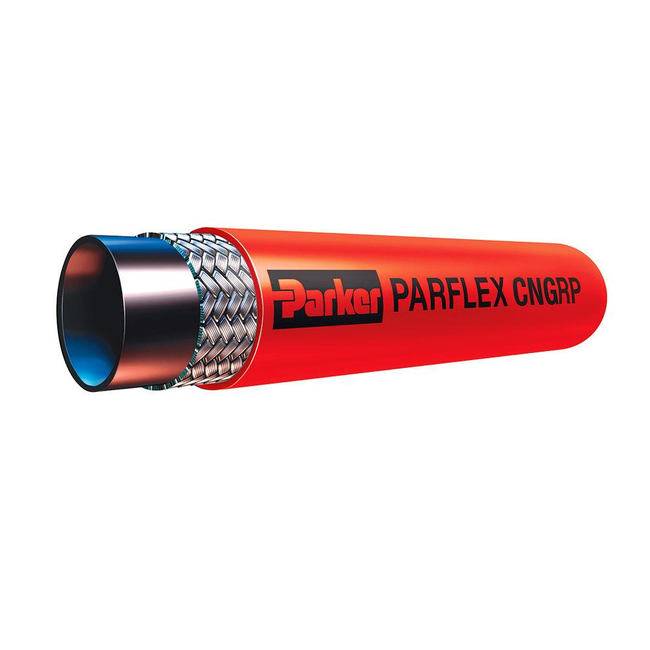

Compressed Natural Gas Hose - Regulated Pressure - CNGRP

Compressed Natural Gas Hose - Regulated Pressure - CNGRP

Brand: Parker Hannifin
Add Product to My Catalog

Parker CNGRP is an electrically conductive hose designed for compressed natural gas applications downstream of the pressure regulator.

Parflex CNGRP hose is the only fully CSA listed fluid conveyance system that is flexible.

The flexibility of the product provides reduced warranty costs versus stainless steel tubing in vibration/movement applications.

It is constructed with an electrically conductive Nylon core to dissipate static build up and stainless steel reinforcement for corrosion and kink resistance.

In addition, the thermoplastic vulcanizate (TPV) jacket provides protection from outdoor elements encountered in on-vehicle applications.

Parker CNGRP may be the only low pressure hose that meets "ALL" CSA requirements for electrically conductive hose downstream of the pressure regulator.
Features
  • Electrically conductive nylon core tube
  • Flexible TPV cover
  • Specifically designed for applications downstream of the pressure regulator
  • Low permeation Nylon core tube
  • SS braid reinforcement allowing compact bend radius

Specifications

Brand

Applications

  • Transportation

Color

  • Red

Compatible Fittings

  • 91N

Hose I.D. (inch)

  • 5/8

Hose I.D. (mm)

  • 16

Hose I.D. (Size)

  • -10

Hose O.D. (inch)

  • 1.04

Hose O.D. (mm)

  • 26

Hose Type

  • Conductive

Industry Standards

  • ANSI/CSA NGV 3.1, NFPA 52, CSA 12.3 Class C, CSA Listing #70102698

Maximum Working Pressure (bar)

  • 34.5

Maximum Working Pressure (Mpa)

  • 3.45

Maximum Working Pressure (psi)

  • 500

Maximum Working Temperature (°C)

  • 120° C

Maximum Working Temperature (°F)

  • 248° F

Media

  • Fuels

Minimum Bend Radius (inch)

  • 5

Minimum Bend Radius (mm)

  • 127

Minimum Working Temperature (°C)

  • -40° C

Minimum Working Temperature (°F)

  • -40° F

Weight (kg/m)

  • 0.63

Weight (Lbs/Ft)

  • 0.42

  • Fleet transit
  • CNG fuel transfer

Documentation
