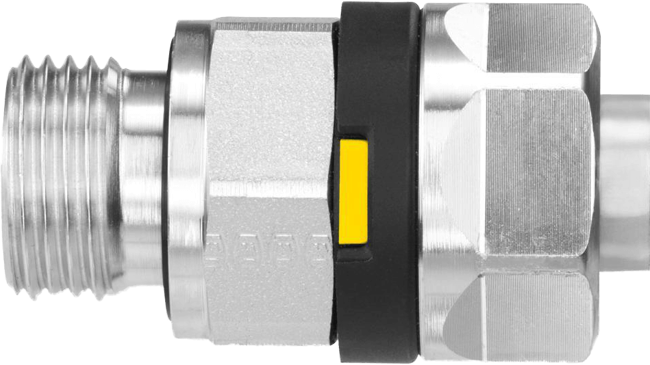

EO-3® Tube Fitting System - OBSOLETE

Brand: Parker Hannifin
Add Product to My Catalog

Parker EO-3® fittings ensure rapid and safe tube and hose assembly to prevent leakage in hydraulic systems, using a unique system of visual assembly status recognition.
Features
  • The indicator ring for unambiguous assembly outcomes gives security to the assembler. Leakage due to over- or under-tightening is prevented
  • EO-3® is a fitting series for tubing and hose lines and therefore can be used for a broad range of applications
  • A taper thread as the new thread standard enables safer, more rapid assembly due to lower expenditure of energy. Assembly times will be reduced.
  • EO-3® is a tearout-proof connector technology which stands for optimum safety

Specifications

Brand

Applications

  • Agriculture Equipment, Construction Equipment, Hydraulic, Manufacturing Equipment, Material Handling, Mobile Equipment, Transportation

Connection 1 Thread Style

  • na, EO3 Cone End, EO3 Swivel, EO 24° Cone End, EO-3 Weld Nipple

Connection 2 Thread Style

  • na, EO3 Cone End, EO3 Swivel, EO 24° Swivel, Metric Male Stud End - O-Ring (ISO 6149-2/-3), Male Metric Thread - ED (ISO 9974), inch Mal Stud End - ED (ISO 1179-2), inch Male Stud End - ED (1179-2), Male Metric Thread with Soft Seal Ring, BSPP Male Thread

Connection 3 Thread Style

  • na, EO3 Cone End, EO3 Swivel

Connection Size

  • M10 x 1.0-M48 x 2.0, G 1/8 A-G 1-1/2 A, G 1/8-G 1-1/2

Material

  • Steel Cr(VI)-free

Maximum Working Pressure (bar)

  • 250-420

Maximum Working Pressure (Mpa)

  • 25-42

Maximum Working Pressure (psi)

  • 3626-6092

Maximum Working Temperature (°C)

  • +250° Steel, +400° Stainless Steel

Maximum Working Temperature (°F)

  • +482° Steel, +752° F Stainless Steel

Minimum Working Temperature (°C)

  • -40° C Steel, -60° C Stainless Steel

Minimum Working Temperature (°F)

  • -40° Steel, -76° F Stainless Steel

Shape

  • Straight, Elbow, Tee, Cross, Straight Reduction, Bulkhead Straight, Bulkhead Elbow

Tube I.D. (mm)

  • 1.5-6.0

Tube O.D. (mm)

  • 6-42

Tube O.D. 2

  • 6-42

Tube O.D. 3

  • 6-42

  • Suitable for general hydraulic applications.
