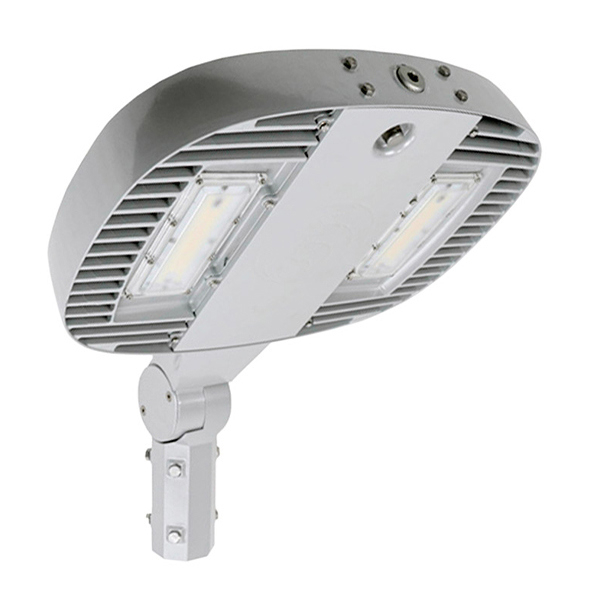

XR Series - 8,000 – 20,000 Lumen Multi-functional Luminaire
Brand: Nemalux Industrial
The XR is a versatile LED fixture designed for applications in extreme environments. Thermal load separation permits use in high ambient temperature locations. Lightweight and low-profile aluminum housing for ease of installation. High-efficiency optical design for improved illumination.
XR Features
- Designed for marine, harsh, and hazardous location use
- Thermal separation of LED and power supply allows max ambient temperatures of up to +75°C
- Field serviceable light engines, power supply, and components to extend system life
- Wide range of optical distribution patterns for superior lighting quality
- Approved for through-wiring of several units on a single circuit
- Built-in junction area for simplified termination
- 8 mounting options for installation flexibility
- Approved for use in general, marine, & hazardous locations
XR Certifications and Safety Ratings
- Certified for general and marine location use under:
- UL 1598, UL 1598A, UL 8750 | CSA C22.2 No. 250.0, CSA C22.2 No. 250.13
- The XR is also certified for hazardous location use under:
- UL 844CSA | C22.2 No. 137
- XR Safety Ratings:
- Class I, Division 2, Groups ABCD | Class II, Division 2, Groups FG | Class III | Class I, Zone 2, Group IIC | Zone 21 | Zone 22
Effective Illumination for Industrial Applications
- Light Fixture Performance
- 8,000 – 20,000 lumen output multi-functional LED light fixture for a typical mounting height of 8’ to 25’. Auto-ranging power supplies allow operation on 120-277 VAC or 347-480 VAC. Standard power supplies are 0-10V dimmable. Allowing fine-tuned illumination results based on facility and operator preference.
- Optimized Lighting Effect
- Secondary optics provide a wide range of optical profiles. Increasing light fixture spacing and lighting quality. Quantity reductions of up to 25% are possible when compared to other LED lights.
- Superior Results
- Using Nemalux luminaires we deliver visual comfort and outperform lighting targets.
- Dark Sky
- Perimeter bands surround all light-emitting surfaces, providing a full cut-off feature. Certain XR models are suitable for sensitive environments requiring dark sky (IDA) listing.
Engineered for Extreme Environments
- Protected Against the Elements
- Copper-free and aluminum alloy housing acts as the heat sink, featuring IP66 protection. Pressure equalization membranes allow for humidity control without stressing the electronic.
- Extended Luminaire Life
- Optimized fin spacing promotes debris shedding and convective airflow. This extends the life of the internal components. Proprietary design features allow thermal separation of the power supply and LED heat sink. Physical separation of housing elements is not required for this effect. The reduction of thermal interaction between the electronics increases the ambient temperature rating.
- Improved Visibility
- Impact-resistant polycarbonate lenses provide protection for LEDs. Ultra-efficient secondary optics deliver high lumen per watt ratios. Select models qualify for DLC. Advanced manufacturing processes result in textured lenses for flood models. This improves the visual comfort of facility operators.
- Designed for Harsh Environments
- Multi-layer powder coat provides chemical and UV resistance in corrosive locations. Allowing long-term deployment in certain corrosive outdoor and indoor locations.
XR - Encapsulated Variant
LED lights can face submersion for an extended period in certain applications. This challenge is also present in some industrial, infrastructure and maritime locations. Nemalux offers a version of the XR that is suitable for IP68 applications. An optically clear encapsulant creates a permanent seal. Maintaining protection against the ingress of water to a depth of up to 25'. The XR-EN model operates at full output in dry as well as submerged conditions.
XR - Zone 21
The XR Series LED fixtures have been certified with a Zone 21* classification. Zone 21 is a place in which an explosive atmosphere is likely to occur in normal operation. The Nemalux luminaires can provide safe and effective lighting in industrial and hazardous locations.
*Only applies to the LC Certified Variant.
