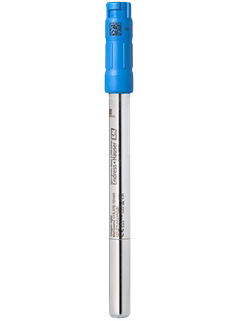

Digital Oxygen Sensor Memosens COL37E
Brand: Endress+Hauser Group Services AGThe optical oxygen sensor Memosens COL37E allows for easy handling and maintenance. It allows simple adjustments to enhance the oxygen measurement and has a very fast response time. With the Memosens 2.0 technology operators also benefit from true plug and play. The sensor is agile in all environments and allows quick checking of oxygen values in aeration tanks, fish farms and surface water.
Memosens COL37E is suited for:
- Check of on-line measuring loops
- Analysis of grab samples (on-site as well as in the laboratory)
- Measurement at process points where regular checks are recommended
- Flow-free C-shaped optical cap eliminates interference of air bubbles
- Easy handling thanks to optical sensor technology without electrolyte and polarisation time
- Long lifetime of the robust optical spot for stable measurements
- Memosens technology with true plug and play and conclusive traceability
- Easy cleaning due to optical measurement principle and seamless design
- Temperature compensation and registration with the integrated temperature sensor
- Supports the requirements of quality management with tamper-proof stored information such as serial number or calibration history
Specifications
Measuring
- Oxygen
Measuring Range
- 0 to 200%SAT
Material of Construction
- Stainless Steel
Process Temperature
- -5° to 60° C (23° to 140° F)
Process Pressure
- 1 bar, Not Intended for Continuous Measurement in Process
Temperature Sensor
- Pt1000
Ingress Protection
- IP68
Connection
- Inductive, Digital Connection Head with Memosens 2.0 Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120 mm (4.72 inch)
- Surface Water
- Wastewater
- Process Water
