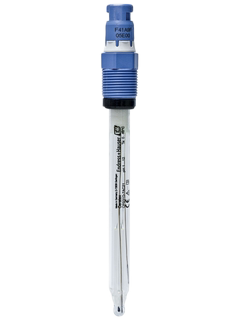

Digital pH Sensor Memosens CPS31D
Brand: Endress+Hauser AG
Memosens CPS31D is the digital expert for pH compensation in disinfection processes. Its three diaphragms make it suitable for minimum conductivity while its low drift guarantees stable measurement. The sensor makes sure that swimming pool water is agreeable and drinking water tasteful.
Memosens CPS31D is not the latest Memosens generation.
- Drinking water
- Swimming pool water
- pH compensation for free chlorine measurement
- Reliable measurement at minimum conductivity thanks to three diaphragms
- Low drift by very low level of ion depletion in electrolyte
- Optional salt ring for extended operating time
- Maximum process safety through non-contact inductive signal transmission
- Enables predictive maintenance due to storage of sensor and process-specific data
- Reduced operating costs due to minimized process downtime and extended sensor lifetime
Specifications
Brand
Measuring Range
- pH 1 to 12
Material of Construction
- Glass & Ceramic
Process Temperature
- 0° to 80° C (32° to 176° F)
Process Pressure
- 1 to 4 bar (15 to 60 psi)
Temperature Sensor
- NTC 30K
Ingress Protection
- IP68
Connection
- Memosens Plug-in Head for Digital, Non-contact Data Transmission
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120 mm (4.70 inch)
- Drinking Water and Swimming Pool Water
- pH Compensation for Measuring Free Chlorine
