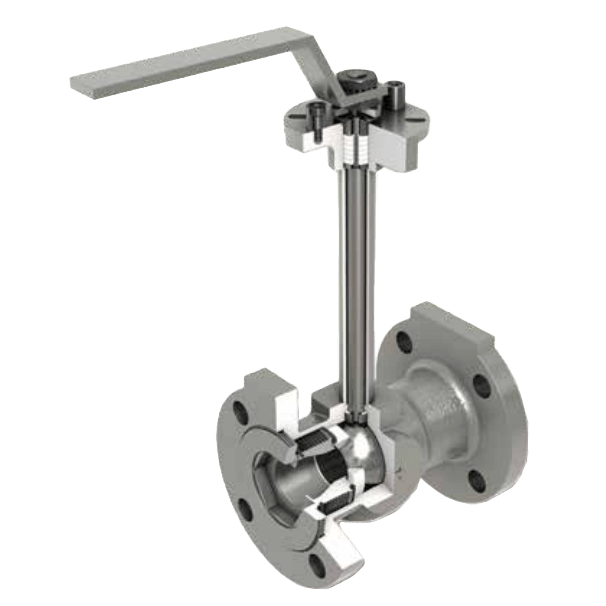

TBV Series 21/20 Cryogenic Ball Valve
Brand: CameronCameron is a leading provider of valves, valve automation, and measurement systems to the oil and gas industry.
Its products are used primarily to control, direct, and measure the flow of oil and gas as it is moved from individual wellheads through flowlines, gathering lines, and transmission systems to refineries, petrochemical plants, and industrial centers for processing.
Cameron provides critical service valves for refinery, chemical, and petrochemical processing businesses, and for associated storage terminal applications, particularly through its ORBIT and GENERAL VALVE product lines.
These brands are complimented by WKM® and TBV™ valve products, and considerably expand the scope of Cameron’s product offerings.
Specifications
Brand
Approvals & Certifications
- API 607 - Fire-Safe Tested
- Cryogenic Testing: BSI BS 6364, Bechtel 3PC-PV00-F0001 & Chevron Low-Temperature & Cryo-Service
- FE (Fugitive Emissions) Test: ISO 15848
Ball Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel - ASTM A479
- 316L Stainless Steel
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Monel - ASTM B164, Grade 400
- Nitronic 50
Configuration
- Floating Ball - Ball/Seat Configuration
Enclosure Finish
- Chrome-Carbide Coating
- Electro-Polishing
- Tungsten-Carbide Coating
Enclosure, Body Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel - ASTM A351 CF3M - End Plug
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Nitronic 50
Flange Type
- Raised Face Surface Finish Meets the Latest ASME B16.5
Gasket Material
- Spiral-Wound Body Gasket: Hastelloy C Grafoil
Handle Assembly Material
- Stainless Steel Oval Handle
Nut & Bolt Material
- A193 B8M CL2 x A194 8M
- ASTM A193 B8M CL2 x A194 8M
- ASTM A320 L7 x A194 Grade 4
- Inconel 718
Operation
- 180°
- 90°
Port
- Reduced (Standard, Regular)
Relief
- Cavity Pressure Relieving Seats (For Bi-Directionality)
- Self-Relieving Seats
- Upstream End Plate Slot
Seat / Seal Material
- Cryofil
- CTFE (KEL-F)
- Grafoil
- Graphite
- JLON
- Metal
- PTFE
- Spiral-Wound Body Seal: 316 Stainless Steel
- Spiral-Wound Body Seal: TFE
- Ultrafil
Stem Material
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- 317 Stainless Steel
- 630 Stainless Steel
- Brass
- Inconel
- Nitronic 50 HS
Temperature Range
- -269° to 121° C (-452° to 250° F)
Valve Type
- Manual
Size
- 1/2" to 8" (15 to 200 mm)
Pressure Rating
- ASME Classes 150 to 600
- Aerospace Equipment
- Air Separation
- Cold Service Applications
- Food Freezing
- High-Purity Gases for Semiconductor Applications
- Liquefaction (Export Terminals)
- Liquefied Natural Gas (LNG)
- Liquefied Petroleum Gas (LPG)
- Pharmaceutical (Blanketing, PH Control, Pipe Freezing, Process Chilling, Water Treatment & Shrink Fitting)
- Pipelines & Refueling
- Transport (Trucking, Marine, Rail)
