Emerson DeltaV Controller, SX

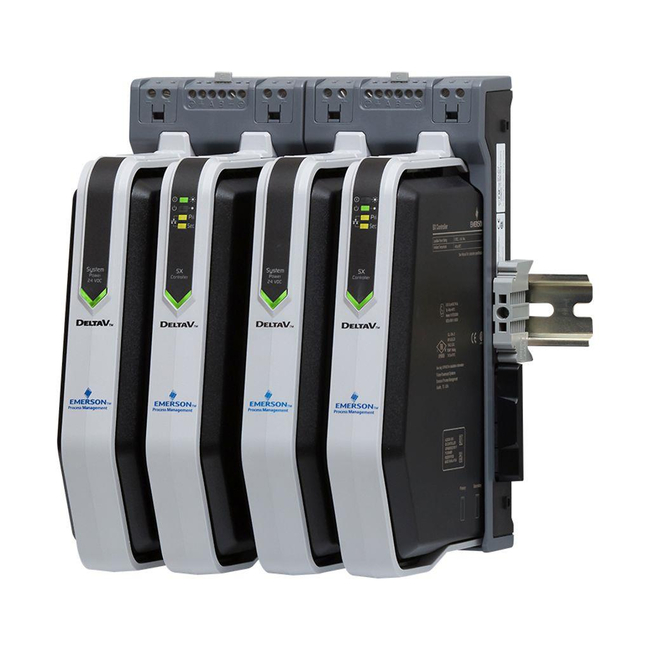

DeltaV™ SX Controller

Brand: DeltaV
Add Product to My Catalog

The DeltaV™ controllers provide communication and control functions and integrate field devices and the other nodes on the control network.

The SX and SQ controllers provide a choice to match the controller capacity to the requirements of the process.

They also provide new ease of use features that eliminate mounting screws and accelerate cabinet assembly.
Features
  • Supports all the features you’ve come to expect from the DeltaV™ system: self-addressing, automatic I/O detection.
  • Supports 1:1 redundancy for increased availability.
  • Hardware has been redesigned for speed of project execution.
  • Controllers are easy to configure.
  • New design delivers installation and robustness enhancement while still using the same processor and OS that has proven itself in the field.
  • Controllers have highly distributable I/O capabilities with CHARMs based Electronic Marshalling.

Specifications

Brand

DST Limit

  • 1500

Fuse Protection (Internal)

  • 3.0 A, Non-Replaceable Fuses

Maximum Data Values Received

  • 500/second

Maximum Data Values Sent

  • 4000/second

Maximum Unsolicited Client Nodes

  • 120

Module Execution Rates

  • 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s, 60 s

Operating Temperature

  • -40° to 60° C (-40° to 140° F)

Power Dissipation

  • 5.0 W Typical, 7.0 W Max.

Reltive Humidity

  • 5 to 95 % - Non-Condensing

SCADA Tags

  • 3200

Shock

  • 10 G1/2 - Sine Wave for 11 milliseconds

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

User Memory

  • 96 MB

Vibration

  • 1 mm Peak-to-Peak from 2 to 13.2 Hz, 0.7 G from 13.2 to 150 Hz

Documentation

Data Sheets
