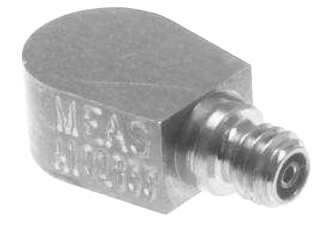

7102A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 7102A is a miniature adhesive mount IEPE accelerometer available in ±50 to ±2000g dynamic ranges.
The accelerometer features a welded hermetic Titanium construction with an M3 connector. The model 7102A accelerometer has an operating range of -55° to 125°C and a flat frequency response to greater than 11 kHz. The miniature and light weight Titanium package renders the accelerometer ideal for applications requiring minimal mass loading.
Features- ±50 to ±2,000g Dynamic Range
- Wide Bandwidth Up to 11 kHz
- Welded Titanium
- Hermetically Sealed
- 55° to 125°C Operating Range
- Annular Shear Mode
- Isolated from Mounting Surface
Specifications
Accuracy
- ± 1.0 % of Full Scale Output Non-Linearity
Applications
- High Frequency Applications
- Laboratory Testing
- Modal Applications
- Small Structures Monitoring
- Vibration & Shock Monitoring
Approvals & Certifications
- CE
- RoHS
Constant Acceleration
- ± 50 to ± 2,000 G
Consumption
- 2-10 mA
Electrical Connectors
- M3 Coaxial Receptacle
Environmental Protection
- IP67
Excitation Voltage
- 18-30 Vdc
Frequency
- 0.5 to 11,000 Hz
Input Power
- 8-12 Vdc
Mounting
- Adhesive
NACE & NIST
- NIST
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- ± 5 V - Full Scale Output
Output Load
- < 100 ohms
Output Noise
- 0.0004 to 0.0032 G RMS
Sensitivity
- 2.5-100 mV/g
Sensor, Probe Material
- Ceramic - Shear Mode
Shock
- 5,000 G
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Temperature Range
- -40° to 120° C (-40° to 248° F)
Turn-On Time
- 0.8 to 1.2 seconds
