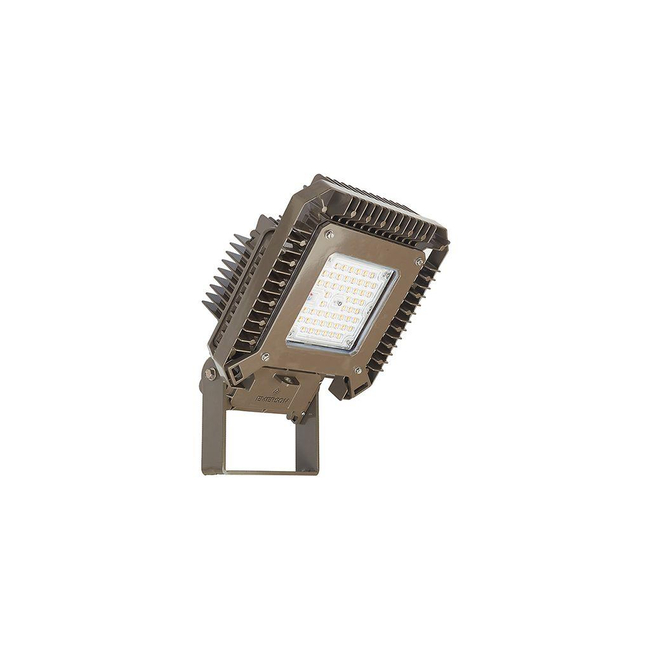

Appleton™ Areamaster™ Generation 2 Zone 1 LED Luminaires
Brand: AppletonAreamaster™ Generation 2 Zone 1 LED Luminaires deliver best-in-class LED performance.
The redesigned Areamaster provides greater versatility, with models from 9,000 to 18,500 lumens and a choice of beam patterns to meet your diverse floodlighting needs.
Featuring optic designs that deliver superior uniformity and coverage, the Areamaster™ Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens.
They are certified for ATEX/IECEx Zones 1, 2, 21 and 22.
Features- Typical applications include Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment Facilities and other areas
- Three lumen outputs provide up to 18,500 lumens with a choice of optics for optimal light distribution
- Separate field wiring compartment with screw terminal block for easy and secure connection (can accept 0.14-6 mm², UL/CSA 26-10AWG)
- Choice of color temperature (CCT); 5000K cool white, 4000K neutral white or 3000K warm white
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners. Guard and visor available, purchase separately.
- Standard 6KV surge protection
- Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slipfitters for easy retrofit. Slip-fitters and mounting brackets available for easy pole or wall mounting
- Two 3/4" NPT entries provided. Order "M" suffix for two M20 Metric entries
- Field replaceable LED driver and lens cover available
Specifications
Brand
Ambient Temperature
- -40° to +65° C (-40° to +149° F)
Approvals & Certifications
- ATEX/IECEx
Electrical
- 120-277 Vac 50/60 Hz, 170-300 Vdc, 50/60 Hz
Lumens to Watts
- 14,000 Lumens: 250-400 W HID
- 18,500 Lumens: 400-750 W HID
- 9,000 Lumens: 175-250 W HID
Standard Finishes
- Architectural Bronze Polyester Housing, Lens Cover, Visor & Yoke Mount
Standard Materials
- Gaskets: Silicone Rubber
- York: Zinc-Plated HR Steel
- Bolts & Guard and Safety Cable: Stainless Steel
- Close-up plugs:, Visor: Aluminum
- Housing & Lens Door: Copper-Free (4/10 of 1% Max.) Aluminum
