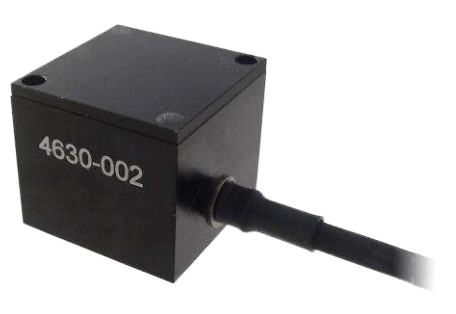

4630 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 4630 is an ultra-stable triaxial accelerometer offering both static and dynamic response.
The silicon MEMS accelerometer incorporates integral temperature compensation that provides a stable output over a wide operating range. The three independent circuit assemblies have independent signal conditioning and can operate on common or separate power supplies.
The advanced MEMS sensing elements are gas damped in order to provide a wide stable frequency response.
Features- Three Independent Circuits
- Low Current Consumption
- Ranges: ±2 to ±200 g
- Gas Damped, DC Response
- High Over-Range Protection
- -55° to 125° C Operating Range
- Low Transverse Sensitivity
1 - 8 of 8 Part Numbers
4630-002-060-C
- Range - ± 2 G
- Cable Length - 60" (5 ft)
4630-005-060-C
- Range - ± 5 G
- Cable Length - 60" (5 ft)
4630-010-060-C
- Range - ± 10 G
- Cable Length - 60" (5 ft)
4630-020-060-C
- Range - ± 20 G
- Cable Length - 60" (5 ft)
4630-030-060-C
- Range - ± 30 G
- Cable Length - 60" (5 ft)
4630-050-060-C
- Range - ± 50 G
- Cable Length - 60" (5 ft)
4630-100-060-C
- Range - ± 100 G
- Cable Length - 60" (5 ft)
4630-200-060-C
- Range - ± 200 G
- Cable Length - 60" (5 ft)
1 - 8 of 8 Part Numbers
Specifications
Applications
- Low Frequency Applications
- Modal Analyses
- Road Vehicle Testing
- Transportation
- Vibration/Shock Monitoring
Approvals & Certifications
- CE
- RoHS
Cable Material
- PFA Insulated Leads
Electrical Connectors
- 30 AWG Conductors PFA Insulated Leads
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
Excitation Voltage
- 8-36 Vdc
Frequency
- 0 to 1,000 Hz
- 700 to 8,000 Hz - Natural Frequency
Insulation Resistance
- > 100 megaohms at 100 Vdc
Mounting
- M3 Screws
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- < 15 mA - Excitation Current
- ± 2 V - Full Scale Output Voltage
- ± 50 mV - Zero Acceleration Output
Output Noise
- 38 to 2,530 µg/√Hz - Passband: Spectral Noise
- 550 to 1,100 µV RMS - Passband: Residual Noise
Resistance
- < 100 ohms - Output Resistance
Seat / Seal Material
- Epoxy Seal - Humidity (Housing)
Sensitivity
- < 3 % - Transverse Sensitivity
- ± 0.010 %/°C Typical - Thermal Sensitivity Shift
- 10-1,000 mV/g
Shock
- 2,000 to 5,000 G
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Supply Voltage
- 2.5 Vdc - Bias Voltage
Turn-On Time
- < 100 milliseconds
Zero Balance
- ± 0.004 % of Full Scale Output/°C Typical - Thermal Zero Shift
