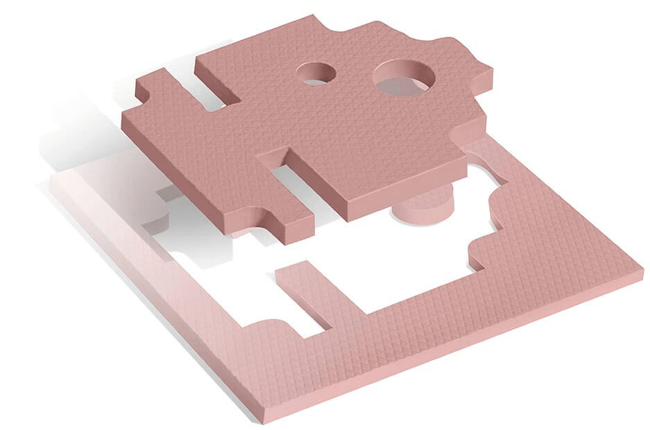

THERM-A-GAP™ 579 Thermally Conductive Gap Filler Pads

Brand: Chomerics

Parker Chomerics THERM-A-GAP™ 579 Thermally Conductive Gap Filler Pads provide a low hardness (30 Shore 00) solution with 3.0 W/m-K of thermal conductivity.

THERM-A-GAP™ 579 series gap-filler sheets and pads offer excellent thermal properties and the highest conformability at low clamping forces.

THERM-A-GAP™ 579 is a combination of excellent thermal performance and conformability while possessing the lowest outgassing.
Features
  • Ultra low deflection force requirements
  • High thermal conductivity
  • High tack surface reduces contact resistance
  • UL 94 V-0 flammability rated
  • RoHS compliant

Specifications

Brand

Coefficient of Thermal Expansion

  • 150 ppm/K

Color

  • Pink

Deflection at Pressure

  • 50 % @ 25

Dielectric Constant

  • 8 @ 1 MHz

Dielectric Strength

  • 200 Vac/mil

Dissipation Factor

  • 0.01 @ 1 MHz

Durometer

  • 30

Flammability Rating

  • UL 94 V-0

Heat Capacity

  • 1 J/g-K

Operating Temperature

  • -67° to +392° F

Outgassing Total Mass Loss

  • 0.19 (0.06) %

Shape

  • Flat Sheets

Shelf Life

  • 36 Months all others
  • 18 Months ”A” Carrier

Specific Gravity

  • 2.9

Specifications Met

  • UL Flammability, RoHS

Thermal Conductivity

  • 3 watt/m-K

Thermal Impedance

  • 4.5° C-Cm²/W

Volume Resistivity

  • 10^14 Ω-Cm
