SOFT-SHIELD 4850 Multi-Planar EMI Gaskets
Brand: ChomericsParker Chomerics SOFT-SHIELD® 4850 series multiplanar, conductive, Z axis foam consist of silver-plated fibers embedded into low density open cell urethane foam and provide stable electrical performance as well as superb z-axis conductivity with extremely short ground paths.
The optimized conductive fiber construction allows for exceptional physical and mechanical properties.

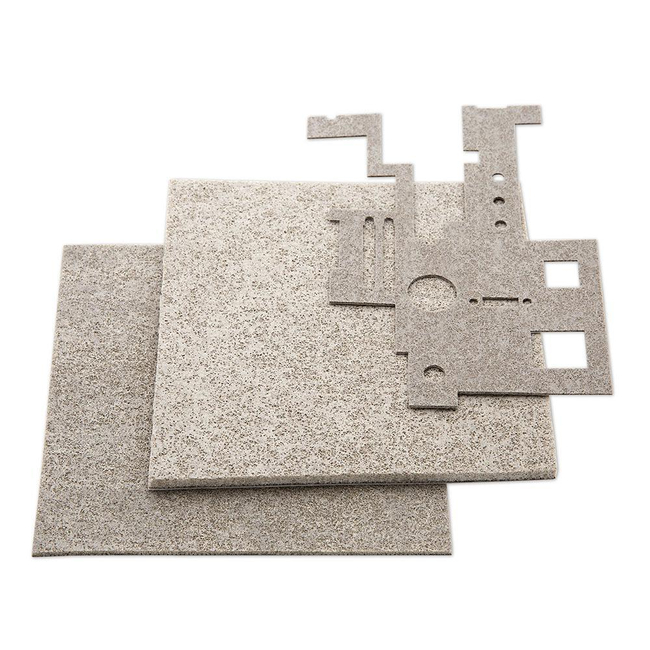

Manufactured in rolls, SOFT-SHIELD® 4850 can be easily die cut or slit into rectangular/square strip gasket seals.
Features- UL 94 V-0 flammability rating
- Excellent through resistance (< 30 milliohm at 25% gasket deflection)
- Option of uniform electrically conductive (silver-plated copper) acrylic pressure sensitive adhesive (PSA)
- Excellent compression set properties
- Very low closure force
- Non-Nickel bearing material
- Non-Bromine bearing material (silver plated materials)
- ROHS compliant
- Roll form compatible with high speed/low cost part conversion
- Compartmental shielding or easy “peel-and-stick” grounding applications
Specifications
Brand
Flammability Rating
- UL 94 V-0
Noise Shielding Level
- 91 - 100 (dB) Avg
Temperature Range
- -40° to 70° C
Tensile Strength
- 0.0683 (MPa)
Width
- 24 inch
Shape
- Bulk Roll, Sheet
Deflection at Pressure
- 15%
Product Series
- SOFT-SHIELD 4850
Product Type
- Bulk Roll, Shape
