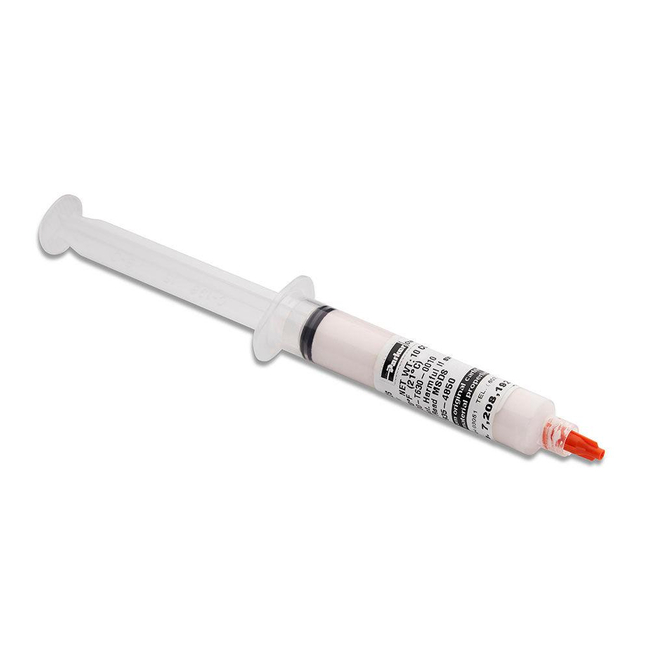

THERM-A-GAP Gels T630 Dispensable, Very Low Compression Force, Thermal Gap Fillers
Brand: ChomericsParker Chomerics THERM-A-GAP™ T630 gel is a highly conformable, pre-cured, single-component compound with 0.7 W/m-K thermal conductivity.
The cross-linked gel structure provides superior long term thermal stability and reliable performance.
These unique materials result in much lower mechanical stress on delicate components than even the softest gap-filling sheets.
They are ideal for filling variable gaps between multiple components and a common heat sink.
Features- Dispensable
- Fully cured
- Highly conformable at low pressures
- No refrigeration, mixing or filler settling issues in storage
- Single dispensable TIM can eliminate multiple pad part sizes/numbers
- Reworkable
Specifications
Brand
Coefficient of Thermal Expansion
- 350 ppm/K
Color
- White
Deflection at Pressure
- 33
Dielectric Constant
- 5.5 @ 1 MHz
Dielectric Strength
- 200 Vac/mil
Dissipation Factor
- 0.01 @ 1 MHz
Film Thickness
- 0.1 mm
Flow Rate
- 10 cc/min
Heat Capacity
- 1.1 J/g-K
Operating Temperature
- -67° to 392° F
Outgassing Total Mass Loss
- 0.55 (0.14) %
Shelf Life
- 18 Months
Specific Gravity
- 2.25
Specifications Met
- UL 94 V-0, RoHS
Thermal Conductivity
- 0.7 watt/m-K
Volume Resistivity
- 10^14 Ω-Cm
