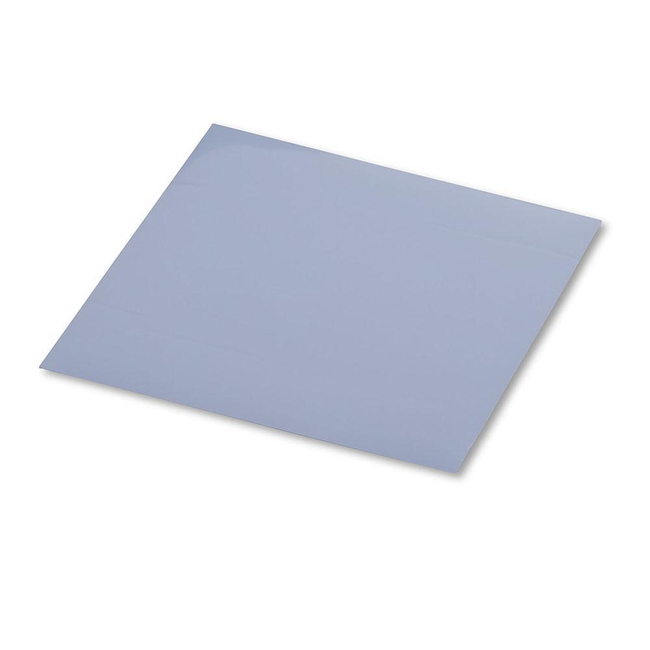

THERM-A-GAP 580 Thermally Conductive Gap Filler Pads
Brand: ChomericsParker Chomerics THERM-A-GAP™ 580 Thermally Conductive Gap Filler Pads provide a moderate hardness (75 Shore 00) solution with 3.0 W/m-K of thermal conductivity.
THERM-A-GAP™ 580 series gap-filler sheets and pads offer excellent thermal properties and the highest conformability at low clamping forces.
THERM-A-GAP™ 580 is best for molding complex parts and vibration dampening while also possessing the lowest outgassing.
Features- Ultra low deflection force requirements
- High thermal conductivity
- High tack surface reduces contact resistance
- UL 94 V-0 flammability rated
- RoHS compliant
Specifications
Brand
Coefficient of Thermal Expansion
- 150 ppm/K
Color
- Yellow
Deflection at Pressure
- 20 % @ 25 psi (174 kPa)
Dielectric Constant
- 8 @ 1 MHz
Dielectric Strength
- 200 Vac/mil
Dissipation Factor
- 0.01 @ 1 MHz
Durometer
- 45
Flammability Rating
- UL 94 V-0
Heat Capacity
- 1 J/g-K
Outgassing Total Mass Loss
- 0.18 (0.05) %
Shape
- Flat Sheets
Shelf Life
- All others are 36 Months
- 18 Months ”A” carrier
Specific Gravity
- 2.9
Temperature Range
- -67° to 392° F
Thermal Conductivity
- 3 watt/m-K
Thermal Conductivity Range
- > =2 watt/m-K
Thermal Impedance
- 4.5° C-Cm²/W
Volume Resistivity
- 10^14 Ω-Cm
