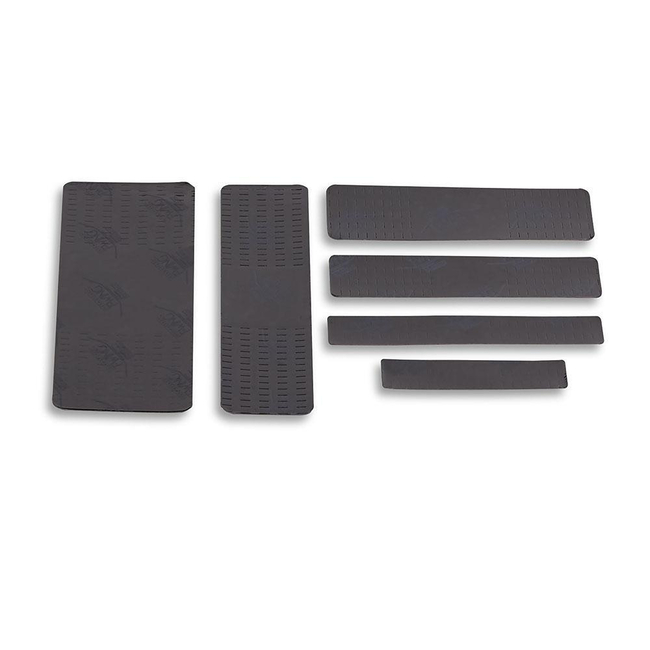

T-WING Thin Heat Spreaders
Brand: ChomericsParker Chomerics T-Wing Thin Heat Spreaders provide a low cost, effective means of cooling high-density integrated circuit devices by conducting heat away from key components.
T-Wing spreaders consist of 5oz. (0.007inch/0.18mm thick) flexible copper foil between electrically insulating films.
High strength silicone PSA (pressure-sensitive adhesive) provides a strong bond to the heat-generating component.
The compliant nature of these “thermal wing” heat spreaders permits nearly 100% adhesive contact with non-flat package surfaces, optimizing thermal and mechanical performance.
Features- Component junction temperature reduction of 10-20°C
- Easily added to existing designs to lower component temperatures and improve reliability
- Custom shapes available for complex designs
- UL 94 V-0 flammability rated
Specifications
Brand
Body Material
- Copper
Color
- Black
Dielectric Strength
- 5000 Vac/mil
Dissipation Factor
- N/A
Film Thickness
- 0.05 mm
Insulation Material
- Black Polyester
Insulation Thickness
- 0.001 inch
Material Thickness
- 0.007 inch
Maximum Operating Temperature
- 125° C
Plate Thickness
- 0.013 (0.33)
Polymer Material Options
- Silicone-based PSA
Shelf Life (Months)
- 12 Months
Specifications Met
- RoHS
- UL 94 V-0
Volume Resistivity
- N/A
Weight
- 0.039 oz./inch^2
