SOFT-SHIELD 4800 Multi-Planar EMI Gaskets

Brand: Chomerics

Parker Chomerics SOFT-SHIELD® 4800 series multiplanar, conductive, Z axis foam consist of silver-plated fibers embedded into low density open cell urethane foam and provide stable electrical performance as well as superb z-axis conductivity with extremely short ground paths.

The optimized conductive fiber construction allows for exceptional physical and mechanical properties.

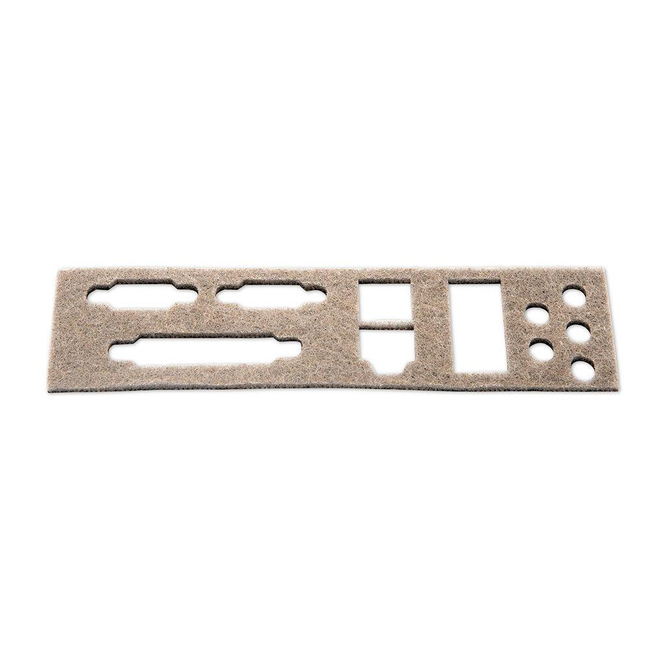

Manufactured in rolls, SOFT-SHIELD® 4800 can be easily die cut or slit into rectangular/square strip gasket seals.
Features
  • Excellent through resistance (< 10 milliohm at 50% gasket deflection)
  • Option of unique selectively coated pressure sensitive adhesive (PSA) optimizes adhesion
  • Excellent compression set properties
  • Very low closure force
  • Non-nickel bearing material
  • Non-Bromine bearing material (ROHS compliant)
  • Roll form compatible with high speed/low cost part conversion
  • Compartmental shielding or easy “peel-and-stick” grounding application

Specifications

Brand

Flammability Rating

  • UL 94 HF-1

Noise Shielding Level

  • 95 dB (Average)

Tensile Strength

  • 0.07 (MPa)

Width

  • 24 inch

Length

  • 50 ft

Fabric Material

  • Silver-Plated Fibers into Urethane Foam

Shape

  • Bulk Roll

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Product Series

  • SOFT-SHIELD 4800

Product Type

  • Bulk Roll
