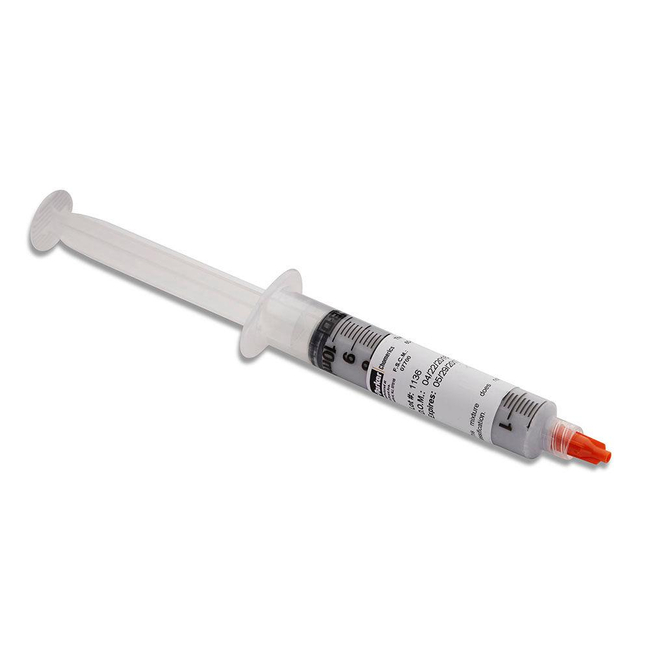

THERM-A-GAP GEL 8010 High Performance Fully Cured Dispensable Gels
Brand: ChomericsParker Chomerics THERM-A-GAP™ Gel 8010 is a fully cured dispensable gel with a thermal conductivity of 3.0 W/m-K, designed to eliminate time consuming hand assembly, decreasing installation costs and reducing customer manufacturing and purchasing (logistical) complexity.
Chomerics THERM-A-GAP GEL 8010 High Performance Fully Cured Dispensable Gels It is specifically meant for thin bond line applications and provides superior design flexibility while requiring no mixing or curing.
Features- Easily dispensable
- Fully-cured / No pump out
- High bulk thermal conductivity
- Low thermal impedance
- Ultra low compression force
- High tack surface and reworkable
- Proven long-term reliability
Specifications
Brand
Coefficient of Thermal Expansion
- 150 ppm/K
Color
- White
Deflection at Pressure
- 57
Dielectric Constant
- 6.3 @ 100 kHz
Dielectric Strength
- 200 Vac/mil
Dissipation Factor
- 0.002 @ 100 kHz
Film Thickness
- 0.05 mm
Flow Rate
- 60 Grams/min
Heat Capacity
- 1 J/g-K
Operating Temperature
- -67° to 392° F
Outgassing Total Mass Loss
- 0.15 (0.05) %
Shelf Life
- 18 Months
Specific Gravity
- 2.7
Specifications Met
- UL 94 V-0, RoHS
Thermal Conductivity
- 3 watt/m-K
Volume Resistivity (Ohm-Cm)
- 10^14 Ω-Cm
