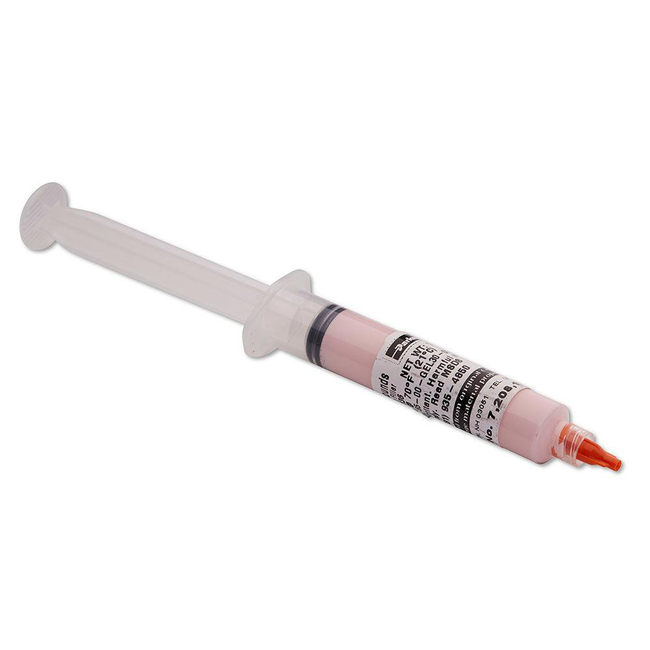

THERM-A-GAP GEL 30 High Performance Fully Cured Dispensable Gels
Brand: ChomericsParker Chomerics THERM-A-GAP™ Gel 30 is a fully cured dispensable gel designed to eliminate time consuming hand assembly, decreasing installation costs and reducing customer manufacturing and purchasing (logistical) complexity.
It requires no mixing or curing, providing superior design flexibility.
Features- Easily dispensable
- Fully-cured / No pump out
- High bulk thermal conductivity
- Low thermal impedance
- Ultra low compression force
- High tack surface & reworkable
- Proven long-term reliability
Specifications
Brand
Coefficient of Thermal Expansion
- 150 ppm/K
Color
- Pink
Deflection at Pressure
- 2
Dielectric Constant
- 7 @ 100 kHz
Dielectric Strength
- 200 Vac/mil
Dissipation Factor
- 0.002 @ 100 kHz
Film Thickness
- 0.1 mm
Flow Rate
- 20 g/min
Heat Capacity
- 1 J/g-K
Operating Temperature
- -67° to 392° F
Outgassing Total Mass Loss
- 0.15 (0.05) %
Shelf Life
- 18 Months
Specific Gravity
- 3.2
Specifications Met
- UL 94 V-0, RoHS
Thermal Conductivity
- 3.5 watt/m-K
Volume Resistivity
- 10^14 Ω-Cm
