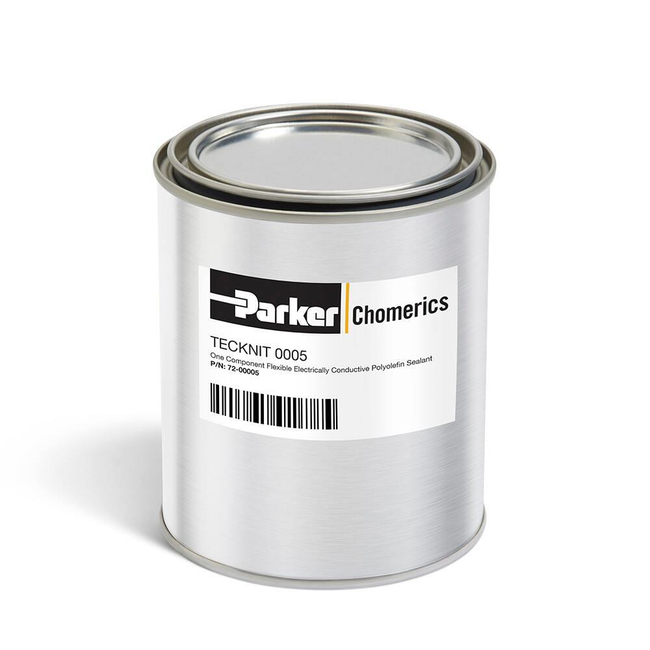

TECKNIT 0005 One Component Flexible Electrically Conductive POLYOLEFIN Sealant
Brand: ChomericsParker Chomerics TECKNIT 0005 is a one component silver-plated glass filled conductive sealant specially formulated to remain flexible for gaps or seams meant to be disassembled.
TECKNIT 0005 is a beige-colored sealant that will remain permanently flexible and adherent with no tendency to crack or pull away from the substrate.
It is a good solution for applications where uneven surfaces and thermal expansion are often encountered.
TECKNIT 0005 has the fasted room temperature cure schedule of any Chomerics sealant or gap filler.
Features- One-component system so no mixing or measuring required
- Excellent conductivity levels (0.005 ohm-com)
- No corrosive by-products generated during drying
- No primer required
- Ozone resistant and had good weathering resistance
- Lightweight material so minimal weight added to assembly
Specifications
Brand
Polymer Material Options
- Polyolefin
Filler Material
- Silver-Plated Glass
Package Type
- 1 pint Aluminum can
Primer Included
- Not Required
Ratio
- 1-part
Color
- Beige
Volume Resistivity
- 0.005 Ω-Cm
Lap Shear Strength
- 28 kPa
Specific Gravity
- 1.7
Durometer
- N/A
Operating Temperature
- -54° to 94° C
Shelf Life
- 9 Months
Film Thickness
- 0.13 to 1.27 mm
