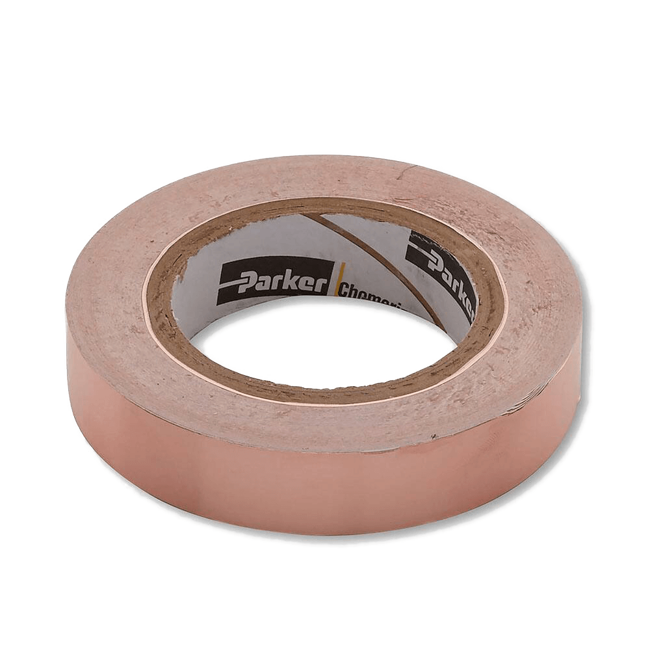

CHO-FOIL EMI Shielding Foil and Fabric Tape with Conductive Adhesive
Brand: ChomericsParker Chomerics CHO-FOIL® metal foil tapes provide an economical solution to applications requiring excellent electrical conductivity across substrates.
CHO-FOIL® can be used to wrap cables in order to provide a low impedance connection between cables and back-shells.
Metal shielding tape is idea for seams of EMI test chambers and enclosures to provide electrical continuity and enhanced shielding.
Features- Metal tapes are available in copper, aluminum, and tin-plated copper
- Embossment available on several metal tape options
- Available with single or double-sided electrically conductive pressure sensitive adhesive (PSA) for leak-free seams
- Tapes available with non-conductive PSA
- Form-factors include rotary kiss-cut parts, die-cut parts, or slit rolls from 0.5 to 24.0 inches wide
- Standard length rolls come in 18 or 36 yards.
Specifications
Brand
Interface Type
- Electrically Conductive
- Pressure-Sensitive Acrylic
Operating Temperature
- -40° to 205° C
- -40° to 82° C
Specifications Met
- UL 94 V-0
Outgassing Total Mass Loss
- 0.04 (0.00)
- 0.09 (0.00)
- Not Tested %
Shelf Life
- 24 Months
